DVK600

SKU: 6522
Part Number: DVK600
Brand: Waveshare

$17.99
$17.092+
$16.393+
$15.894+

Description

Details

FPGA CPLD mother board, provides several I/O interfaces, supports various accessory boards

Overview

DVK600 is an FPGA CPLD mother board that features expansion connectors for connecting FPGA CPLD core board and accessory boards. DVK600 provides an easy way to set up FPGA CPLD development system.


What's On Board

FPGA CPLD development board on board resource
  1. FPGA CPLD core board connector: for easily connecting core boards which integrate an FPGA CPLD chip onboard
  2. 8I/Os_1 interface, for connecting accessory boards/modules
  3. 8I/Os_2 interface, for connecting accessory boards/modules
  4. 16I/Os_1 interface, for connecting accessory boards/modules
  5. 16I/Os_2 interface, for connecting accessory boards/modules
  6. 32I/Os_1 interface, for connecting accessory boards/modules
  7. 32I/Os_2 interface, for connecting accessory boards/modules
  8. 32I/Os_3 interface, for connecting accessory boards/modules

All the I/O interfaces above:

  • capable of being simulated as USART, I2C, SPI, PS/2, etc.
  • capable of driving devices such as FRAM, FLASH, USB, Ethernet, etc.
  1. SDRAM interface
    • for connecting SDRAM accessory board
    • also works as FPGA CPLD pins expansion connectors
  2. LCD interface, for connecting LCD22, LCD12864, LCD1602
  3. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  4. 5V DC jack
  5. Joystick: five positions
  6. Buzzer
  7. Potentiometer: for LCD22 backlight adjustment, or LCD12864, LCD1602 contrast adjustment
  8. Power switch
  9. Buzzer jumper
  10. ONE-WIRE jumper
  11. Joystick jumper

For jumpers 17-19:

  • short the jumper to connect to I/Os used in example code
  • open the jumper to connect to other custom pins via jumper wires

The DVK600 supports a wide range of different core boards, therefore, some of the interfaces may be Not-Connected and useless while connecting to certain core board. For instance, while connecting to Core3S500E/CoreEP2C8, the '⑧ 32I/Os_3' is Not-Connected.

Photos

FPGA CPLD mother board

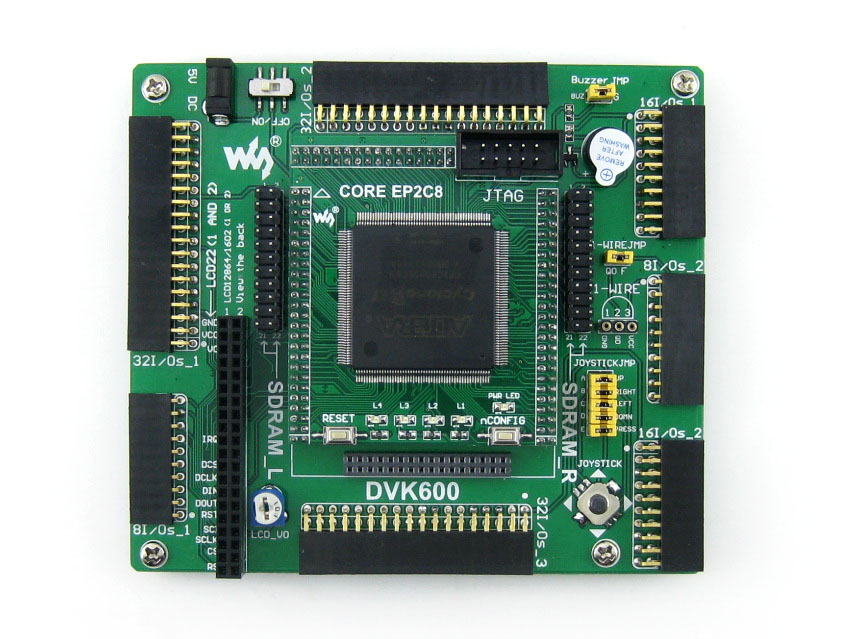

DVK600 FPGA CPLD mother board
FPGA CPLD mother board

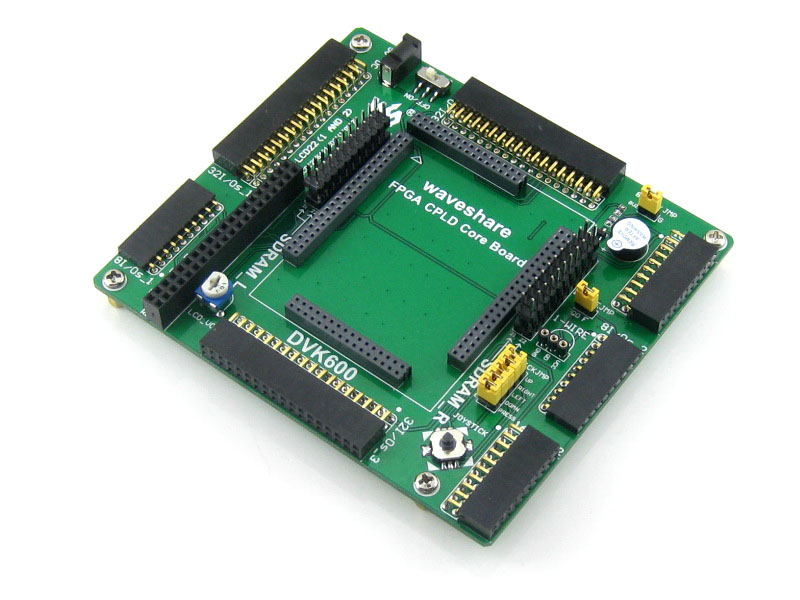

DVK600 FPGA CPLD mother board back view
FPGA CPLD mother board
Connecting with an FPGA CPLD core board
FPGA CPLD mother board

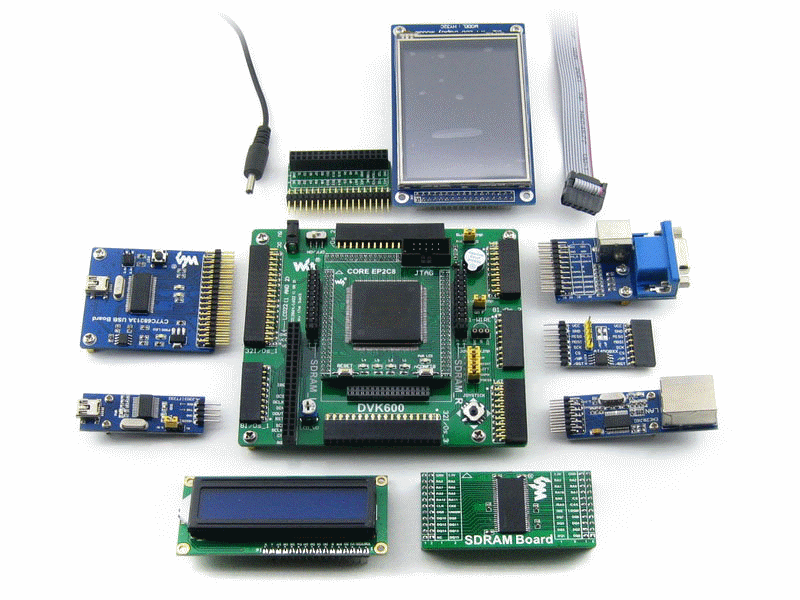

Connecting with core board and accessory boards

Note: core board and accessory boards in the photos are NOT included in the price.




Downloads

Development resources:schematic, etc.
Wiki: www.waveshare.com/wiki/DVK600

Package Content

Weight: 0.085 kg

Quick Overview

  1. DVK600 FPGA CPLD mother board x 1
