Arcade-C-1P, Arcade Console Powered by Raspberry Pi

$98.99
* Power Plug

Select Version:

Description

Details

Arcade-C-1P, Arcade Console Powered by Raspberry Pi, 1 Player

Overview

Arcade-C-1P is a 1 player arcade console powered by Raspberry Pi 3B+, provides classic arcade control: the durable joystick, and of course the colorful buttons.

Thanks to the RetroPie gaming system, thousands of games are available. Once get tired, you can also use the awesome KODI to watch videos, or listen music, enjoy and relax.

Relive your arcade time in childhood.

Features

  • Raspberry Pi 3B+ controller, 64-bit 1.4G quad-core CPU, 1G SDRAM, provides 60fps smooth gaming experience
  • Supports RetroPie gaming system, thousands of game ROMs are available, the only limit is your TF card size
  • Supports KODI home media center, see a movie, listen music, watch live show, never be a problem
  • HDMI port, connecting to your monitor, TV, or projector, supports 1080P display, configurable resolution
  • Onboard 2.4GHz/5GHz dual-band WiFi, make it possible to eliminate the mess wiring
  • 4x USB ports for connecting USB gamepad, mouse, and keyboard, etc.
  • Embedded left / right dual track stereo speakers, listen to the familiar BGM from the old days

Specifications

  • Product category: Arcade Console
  • Controller: Raspberry Pi 3B+ (64-bit quad-core CPU, 1G SDRAM, with WiFi / Bluetooth)
  • Storage: 16G (supports up to 256G TF card)
  • Enclosure material: alloy bottom case, UV silk print acrylic panel
  • Connectivity: HDMI / USB / Ethernet
  • Resolution: 1080P, configurable
  • Games: thousands of games are available, added by user
  • Arcade control: joystick and 8x buttons, allows user-defined
  • Power supply: 5V
  • Dimension: 30cm × 21.5cm × 7.5cm

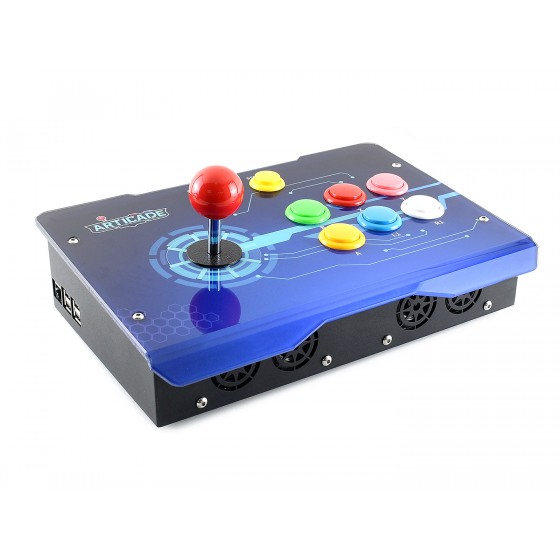

Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration Arcade-C-1P arcade console illustration

Development Resources

Wiki : www.waveshare.com/wiki/Arcade-C-1P

Selection Guide

PartNumber Category Display Requirements
GamePi15 Portable Game Console 1.54inch display, 240×240 resolution Pi required
GamePi20 Portable Game Console 2.0inch IPS display, 320×240 resolution Pi included, out-of-box
GamePi20-Acce Portable Game Console 2.0inch IPS display, 320×240 resolution Pi required
Game HAT Portable Game Console 3.5inch IPS display, 480×320 resolution Pi required
GamePi43 Portable Game Console 4.3inch IPS display, 800×480 resolution Pi included, out-of-box
GamePi43-Acce Portable Game Console 4.3inch IPS display, 800×480 resolution Pi required
Arcade-101-1P Arcade Machine 10.1inch IPS display, 1024×600 resolution Pi included
Arcade-101-1P Acce Pack Arcade Machine 10.1inch IPS display, 1024×600 resolution Pi required
Arcade-C-1P Arcade Console, 1 Player NONE, supports 1920×1080 resolution Pi included, HDMI display required
Arcade-C-1P Acce Pack Arcade Console, 1 Player NONE, supports 1920×1080 resolution Pi required, HDMI display required
Arcade-C-2P Arcade Console, 2 Players NONE, supports 1920×1080 resolution Pi included, HDMI display required
Arcade-C-2P-Acce Arcade Console, 2 Players NONE, supports 1920×1080 resolution Pi required, HDMI display required
Arcade-D-1P  USB Arcade Control Box NONE, No video output Raspberry Pi / PC / Tablet / Smart TV required

Have a look:

Arcade Machine Console Control Box Selection

Package Content

Weight: 3.546 kg

Quick Overview

Net Weight: 2.046 kg

Note: Assembled before shipping, ready to play when you receive it.

Arcade-C-1P Acce Pack

  1. Acrylic panel x1
  2. Alloy bottom case x1
  3. Arcade Game HAT x1
  4. Joystick & buttons x1
  5. 8Ω 5W speaker x1
  6. HDMI cable x1
  7. Arcade button wires x8
  8. Arcade joystick wire x1
  9. Rubber feet ×4
  10. Screwdriver x1
  11. Screws pack x1

Additional Parts in the Kit

  1. Raspberry Pi 3 Model B+ x1
  2. Micro SD Card 16GB x1
  3. OPTIONS Power adapter x1
