7inch Capacitive Touch LCD (D) 1024x600

SKU: 8959
Part Number: 7inch Capacitive Touch LCD (D)
Brand: Waveshare

$48.99
$42.0920+
$36.69100+

Select Version:

Description

Details

7 inch 1024*600 Multicolor Graphic LCD, with capacitive touch screen and stand-alone touch controller

Key Parameters

LCD Type TFT
Interface RGB/LVDS
Touch Controller FT5206GE1
Touch Panel Type Capacitive (5 multi-touch)
Backlight LED
Display Size (mm) 153.6 (W) × 90.0 (H)
Dot Pitch (mm) 0.05 (W) × 0.15 (H)
Aspect Ratio 8 : 5
Resolution 1024 × 3(RGB) x 600 (Pixel)
Power Consumption TBD
Backlight Current TBD
Operating Temp. (℃) 0 ~ +70

RGB Interface Definition

PIN NO. SYMBOL I/O FUNCTION
40 BL_VDD Power Backlight power supply connect 5V
39 BL_VDD Power Backlight power supply connect 5V
38 GND Power Power ground
37 VDD Power Power supply voltage connect 3.3V
36 R0 Input Red data (LSB)
35 R1 Input Red data
34 R2 Input Red data
33 R3 Input Red data
32 R4 Input Red data
31 R5 Input Red data
30 R6 Input Red data
29 R7 Input Red data (MSB)
28 G0 Input Green data (LSB)
27 G1 Input Green data
26 G2 Input Green data
25 G3 Input Green data
24 G4 Input Green data
23 G5 Input Green data
22 G6 Input Green data
21 G7 Input Green data (MSB)
20 B0 Input Blue data (LSB)
19 B1 Input Blue data
18 B2 Input Blue data
17 B3 Input Blue data
16 B4 Input Blue data
15 B5 Input Blue data
14 B6 Input Blue data
13 B7 Input Blue data (MSB)
12 GND Power Power ground
11 PCLK Input Pixel clock
10 LCD-BL-EN Input LCD backlight on/off, On=1; Off = 0;
9 HSYNC Input Horizontal Sync Signal
8 VSYNC Input Vertical Sync Signal
7 DE Input Data Enable
6 LCD-BL-ADJ Input LCD backlight Control (PWM control)
5 GND Power Power ground
4 CTP-SDA Input/Output CTP I2C SDA
3 CTP-SCL Input CTP I2C SCL
2 CTP-RST Input CTP Reset input
1 CTP-INT Output CTP Interrupt output

LVDS Interface Definition

PIN NO. SYMBOL I/O FUNCTION
40 NC   No Connector
39 VDD Power Power voltage connect 3.3V
38 VDD Power
37 VDD Power
36 GND Power Power ground
35 GND Power
34 GND Power
33 LVDS-D0N Input LVDS differential data input
32 LVDS-D0P Input LVDS differential data input
31 GND Power Power ground
30 LVDS-D1N Input LVDS differential data input
29 LVDS-D1P Input LVDS differential data input
28 GND Power Power ground
27 LVDS-D2N Input LVDS differential data input
26 LVDS-D2P Input LVDS differential data input
25 GND Power Power ground
24 LVDS-CLKN Input LVDS differential clock input
23 LVDS-CLKP Input LVDS differential clock input
22 GND Power Power ground
21 LVDS-D3N Input LVDS differential data input
20 LVDS-D3P Input LVDS differential data input
19 GND Power Power ground
18 NC   No Connector
17 NC   No Connector
16 GND Power Power ground
15 CTP-SCL Input/Output CTP I2C SDA
14 CTP-SDA Input CTP I2C SCL
13 CTP-RST Input CTP reset input
12 CTP-INT Output CTP interrupt output
11 GND Power Power ground
10 BL_GND Power Backlight Power ground
9 BL_GND Power
8 BL_GND Power
7 NC   No Connector
6 LCD-BL-ADJ Input LCD PWM backlight control
5 LCD-BL-EN Input LCD backlight on/off, On=1; Off=0;
4 NC   No Connector
3 BL_VDD Power Backlight power supply connect 5V
2 BL_VDD Power
1 BL_VDD Power

External Dimension

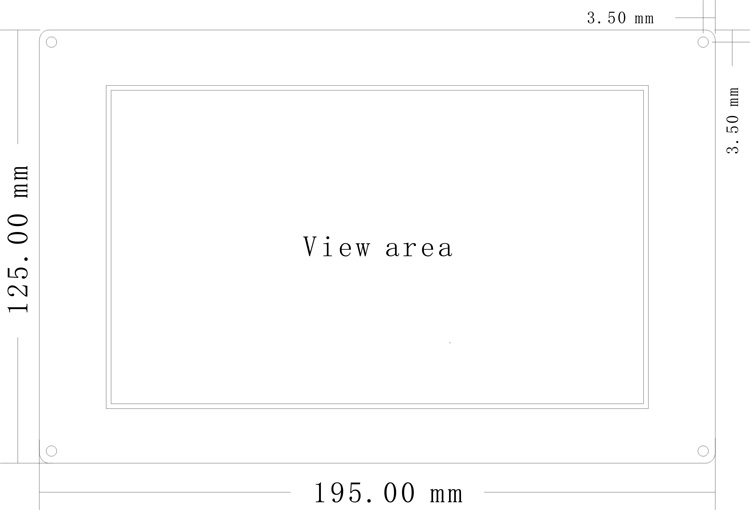

7inch Resistive Touch LCD external dimension

Development Resources

Wiki : www.waveshare.com/wiki/7inch_Capacitive_Touch_LCD_(D)

Compatibility

This item is compatible with the following products:

  • DVK522
  • MarsBoard RK3066
  • MarsBoard RK3066 Pro
  • MarsBoard A20


Selection Guide

PartNumberTouch Panel TypeResolutionLCD Data InterfaceTouch ControllerFor Use With
7inch Resistive Touch LCD Resistive 800x480 24PIN RGB None MCU with LCD controller and ADC
7inch Resistive Touch LCD (C) Resistive 800x480 16PIN Embedded RA8875 MCU without LCD controller
7inch Capacitive Touch LCD Capacitive 800x480 24PIN RGB FT5206GE1 MCU with LCD controller
7inch Capacitive Touch LCD (C) Capacitive 800x480 16PIN GT811 MCU without LCD controller
7inch Capacitive Touch LCD (D) Capacitive 1024x600 24PIN RGB/LVDS FT5206GE1 MCU with LCD controller
7inch Capacitive Touch LCD (E) Capacitive 800x480 24PIN RGB GT811 MCU with LCD controller
7inch Capacitive Touch LCD (F) Capacitive 1024x600 24PIN RGB GT811 MCU with LCD controller
7inch Capacitive Touch LCD (G) Capacitive 800x480 24PIN RGB GT911 MCU with LCD controller
10.1inch Capacitive Touch LCD (D) Capacitive 1024x600 24PIN RGB/LVDS FT5406 MCU with LCD controller
Package Content

Weight: 0.28 kg

Quick Overview

  1. 7inch Capacitive Touch LCD (D) × 1
  2. 40-pin FFC × 1
