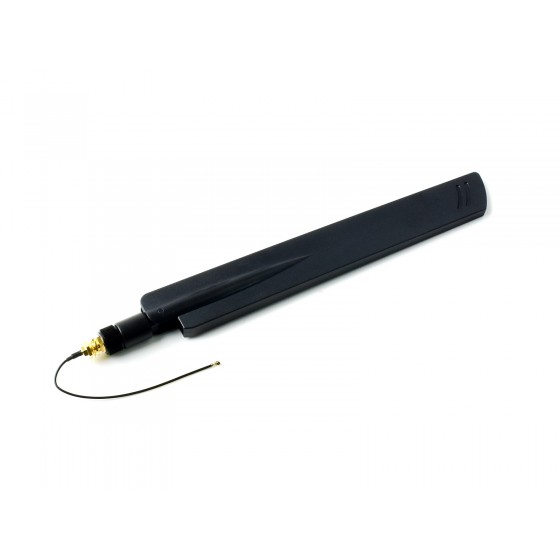

5G High Gain Omni Antenna, 5G/4G/3G/GNSS Compatible, SMA To IPEX-4 Connector

SKU: 19297
Part Number: 5G/4G/3G/GNSS External Antenna




5G high gain omni antenna, 5G/4G/3G/GNSS compatible, SMA to IPEX-4 connector, suitable for 5G communication modules
5G high gain omni antenna

5G/4G/3G/GNSS compatible, SMA to IPEX-4 connector

Network support 5G/4G/3G/GNSS Output impedance (Ω) 50
Frequency band (MHz) 600~6000MHz Connector SMA needle inside
gain (dBi) 18dBi Connection wire SMA to IPEX-4
SWR < 3.0 Dimensions (mm) 220 × 24
Polarization Linear connector inner diameter (mm) 6
Emitting direction Omni-directional Material ABS
Operating temperature (˚C) -20˚C〜+ 85˚C
Connection example

Connecting with 5G module SIM8202G-M2

Connecting with Raspberry Pi 5G HAT SIM8202G-M2 5G HAT

* image for reference only, Raspberry Pi, 5G HAT/Module, and antenna sucker base are NOT included.

Outline Dimensions

Weight: 0.034 kg

Quick Overview

  1. 5G/4G/3G/GNSS External Antenna x1
