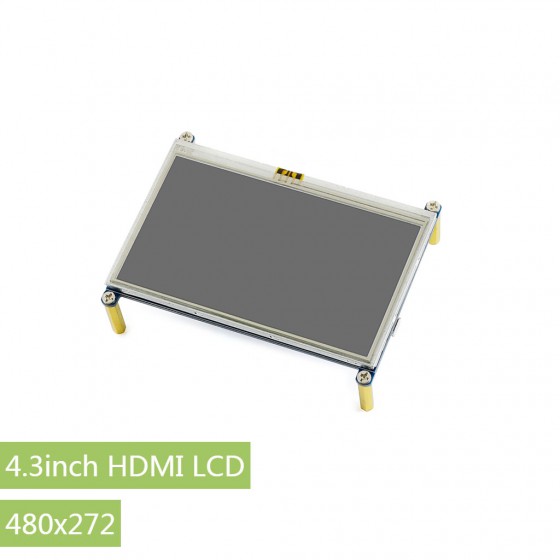

4.3inch HDMI LCD, 480×272

SKU: 11865
Part Number: 4.3inch HDMI LCD
Brand: Waveshare

$34.99
$30.9920+
$28.99100+
Description

Details

4.3inch Resistive Touch Screen LCD, HDMI interface, Designed for Raspberry Pi

Features

  • 480×272 high resolution
  • Resistive touch control
  • Supports Raspberry Pi Zero/Zero W/Zero WH/A+/B+/2B/3B (the Pi 1 model B or Pi Zero requires an HDMI cable)
  • Drivers provided (works with your own Raspbian/Ubuntu directly)
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
  • Backlight can be turned off to lower power consumption

Photos

Interface

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

External Dimension

4.3inch-HDMI-LCD-dimension

Development Resources

Wiki : www.waveshare.com/wiki/4.3inch_HDMI_LCD

FAQ

Why the LCD doesn't work with my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.
However, for the first testing, you may want to use our provided image directly.
Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.
Make sure the image in TF card is burnt correctly.
The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.
Which power supply should I use?
It is recommended to use a 5V/2A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.
For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

Selection Guide

Part NumberResolutionLCD InterfaceTouch Panel InterfaceFor use withDimension (mm)Touch Panel TypeToughened Glass CoverIPSSoundMulti Systems DisplayMulti Systems TouchPopular Game ConsolesHow you feel
2.8inch RPi LCD (A) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × × × ★☆
3.2inch RPi LCD (B) 320×240 I/O I/O Pi As the Pi 3B+ Resistive × × × × × × ★★
3.5inch RPi LCD (A) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × × × × ★★★
3.5inch RPi LCD (B) 480×320 I/O I/O Pi As the Pi 3B+ Resistive × × × × × ★★★
3.5inch HDMI LCD 480×320 HDMI I/O Pi As the Pi 3B+ Resistive × × ★★★★
4inch RPi LCD (A) 480×320 I/O I/O Pi 94 × 61 Resistive × × × × × ★★★☆
4inch HDMI LCD 480×800 HDMI I/O Pi 99 × 58 Resistive × × × × ★★★★
4.3inch HDMI LCD 480×272 HDMI I/O Pi 106 × 68 Resistive × × × × × × ★★★☆
5inch HDMI LCD 800×480 HDMI I/O Pi 121 × 78 Resistive × × × × × × ★★★★
5inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × × × ★★★★☆
5inch HDMI LCD (G) 800×480 HDMI USB Not only Pi 121 × 76 Resistive × × ★★★★☆
5inch HDMI LCD (H) 800×480 HDMI USB Not only Pi 121 × 76 Capacitive × × ★★★★☆
7inch HDMI LCD 1024×600 HDMI I/O Pi 165 × 107 Resistive × × × × × ★★★★
7inch HDMI LCD (B) 800×480 HDMI USB Not only Pi 165 × 107 Capacitive × × × × ★★★★☆
7inch HDMI LCD (C) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive × × × ★★★★★
7inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 165 × 107 Capacitive ★★★★★
10.1inch HDMI LCD 1024×600 HDMI I/O Pi 235 × 144 Resistive × × × × × ★★★★
10.1inch HDMI LCD (B) 1280×800 HDMI USB Not only Pi 274 × 187 Capacitive × × ★★★★★
10.1inch HDMI LCD (D) 1280×800 HDMI USB Not only Pi 258 × 177 Capacitive × ★★★★★
10.1inch HDMI LCD (H) 1024×600 HDMI USB Not only Pi 257 × 162 Capacitive × × × ★★★★☆
13.3inch HDMI LCD (H) 1920×1080 HDMI USB Not only Pi 330 × 208 Capacitive ★★★★★

Note :
Pi 3B+ means Raspberry Pi 3 Model B+
If the LCD is intended to play videos, please choose the one with HDMI display interface for better experience.
※ the 7inch HDMI LCD (H) (with case) features toughened glass cover, while the 7inch HDMI LCD (H) uses a normal screen cover

Have a look :
RPi LCD Comparing

Anti-Piracy

CAUTION: This product is protected by patent, anyone making copies/knock-offs SHOULD be held liable pursuant to law.

Since the first-generation Raspberry Pi released, Waveshare has been working on designing, developing, and producing various fantastic touch LCDs for the Pi. Unfortunately, there are quite a few pirated/knock-off products in the market. They're usually some poor copies of our early hardware revisions, and comes with none support service.

To avoid becoming a victim of pirated products, please pay attention to the following features when purchasing:

RPi LCD Anti-Piracy
(Click to enlarge)

Package Content

Weight: 0.13 kg

Quick Overview

  1. 4.3inch HDMI LCD x 1
  2. HDMI connector x 1
  3. Touch pen x 1
  4. RPi screws pack (4pcs) x 1
  5. DVD × 1
