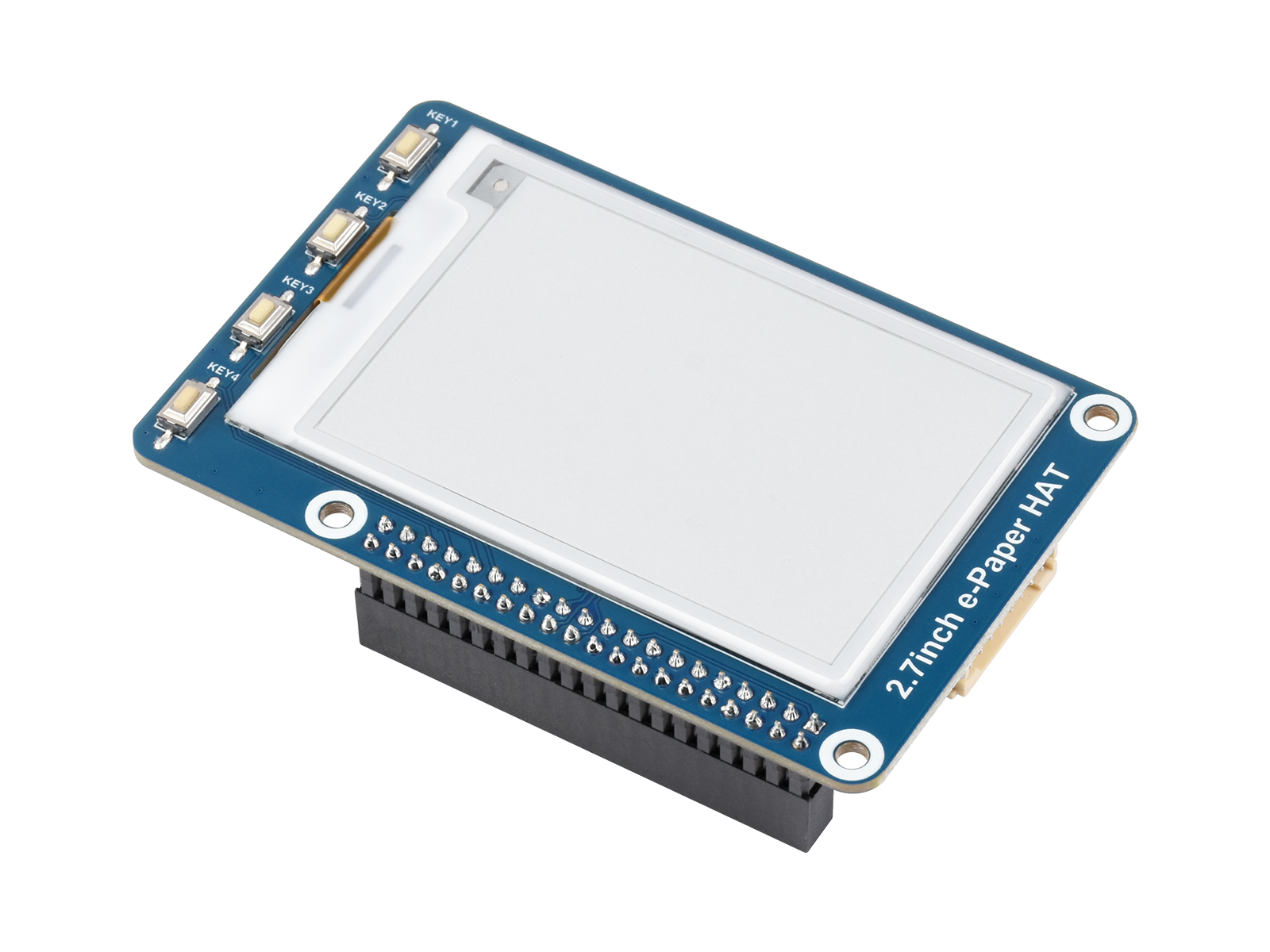

264x176, 2.7inch E-Ink display HAT for Raspberry Pi

SKU: 13354
Part Number: 2.7inch e-Paper HAT
Brand: Waveshare
UPC: 614961950894

$19.99
$18.7910+
$18.1950+
$17.95100+

Related Products:

Description

Details

264x176, 2.7inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.7inch, 264x176 resolution, with embedded controller, communicating via SPI interface.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • Onboard 4x Keys
  • SPI interface, for connecting with other controller boards like Raspberry/Arduino/Nucleo, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 85mm × 56mm
  • Display size: 57.288mm × 38.192mm
  • Dot pitch: 0.217 × 0.217
  • Resolution: 264 × 176
  • Display color: black, white
  • Grey scale: 4
  • Full refresh time: 6s
  • Refresh power: 24mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170°

Interface

SYMBOL DESCRIPTION
VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output, low active

Dimensions

2.7inch e-Paper HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/2.7inch_e-Paper_HAT

Selection Guide

Part NumberColorsGrey ScaleResolutionDisplay size (mm)Outline Dimension (mm)Full Refresh Time (s)Partial Refresh1Pi Head-er2Flexi-bleInterface
1.02inch e-Paper Module black, white 2 128×80 21.76 × 14.00 42.0 × 27.0 2     SPI
1.54inch e-Paper Module black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 2     SPI
1.54inch e-Paper Module (B) red, black, white 2 200×200 27.60 × 27.60 48.0 × 33.0 8       SPI
1.54inch e-Paper Module (C) yellow, black, white 2 152×152 27.51 × 27.51 48.0 × 33.0 27       SPI
2.13inch e-Paper HAT black, white 2 250×122 48.55 × 23.71 65.0 × 30.2 2   SPI
2.13inch e-Paper HAT (B) red, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15     SPI
2.13inch e-Paper HAT (C) yellow, black, white 2 212×104 48.55 × 23.71 65.0 × 30.2 15     SPI
2.13inch e-Paper HAT (D) black, white 2 212×104 48.55 × 23.71 59.2 × 29.2 2 SPI
2.66inch e-Paper Module black, white 2 296×152 30.704 × 60.088 37.0 × 83.5 6     SPI
2.7inch e-Paper HAT black, white 4 264×176 57.29 × 38.19 85.0 × 56.0 6     SPI
2.7inch e-Paper HAT (B) red, black, white 2 264×176 57.29 × 38.19 85.0 × 56.0 15     SPI
2.9inch e-Paper Module black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 2     SPI
2.9inch e-Paper Module (B) red, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15       SPI
2.9inch e-Paper Module (C) yellow, black, white 2 296×128 66.89 × 29.05 89.5 × 38.0 15       SPI
2.9inch e-Paper HAT (D) black, white 2 296×128 66.90 × 29.06 79.0 × 36.7 2 SPI
3.7inch e-Paper HAT black, white 4 480×280 47.32 × 81.12 58.0 × 96.5 3   SPI
4.2inch e-Paper Module black, white 4 400×300 84.80 × 63.60 103.0 × 78.5 4       SPI
4.2inch e-Paper Module (B) red, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15       SPI
4.2inch e-Paper Module (C) yellow, black, white 2 400×300 84.80 × 63.60 103.0 × 78.5 15       SPI
4.3inch e-Paper UART Module black, white 4 800×600 88.00 × 66.00 118.0 × 75.0 1.5       UART
5.65inch e-Paper Module (F) 7-Color 2 600×448 114.9 × 85.8 138.5 × 100.5 15       SPI
5.83inch e-Paper HAT (B) red, black, white 2 648×480 119.232 × 88.320 125.4 × 99.5 20     SPI
5.83inch e-Paper HAT (C) yellow, black, white 2 600×448 118.8 × 88.26 125.4 × 99.5 26     SPI
6inch e-Paper HAT black, white 16 800×600 122.4 × 90.6 138.4 × 101.8 <1   USB/SPI/
I80
6inch HD e-Paper HAT black, white 16 1448×1072 122.4 × 90.6 138.4 × 101.8 <1   USB/SPI/
I80
7.5inch e-Paper HAT black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 5     SPI
7.5inch HD e-Paper HAT black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 5     SPI
7.5inch e-Paper HAT (B) red, black, white 2 800×480 163.20 × 97.92 170.2 × 111.2 16     SPI
7.5inch HD e-Paper HAT (B) red, black, white 2 880×528 163.24 × 97.94 170.2 × 111.2 21     SPI
7.5inch e-Paper HAT (C) yellow, black, white 2 640×384 163.20 × 97.92 170.2 × 111.2 16     SPI
7.8inch e-Paper HAT black, white 16 1872×1404 158.18 × 118.64 173.8 × 127.6 <1   USB/SPI/
I80
9.7inch e-Paper HAT black, white 16 1200×825 202.8 × 139.43 218.8×156.4 <1   USB/SPI/
I80
10.3inch e-Paper HAT black, white 16 1872×1404 209.66 × 157.25 216.7 × 174.4 <1   USB/SPI/
I80
10.3inch e-Paper HAT (D) black, white 16 1872×1404 209.66 × 157.25 227.7 × 165.8 <1 USB/SPI/
I80
12.48inch e-Paper Module black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <8     SPI
12.48inch e-Paper Module (B) red, black, white 2 1304×984 252.98 × 190.90 280.0 × 229.5 <16     SPI
  1. It usually takes about 0.3s for partial refresh
  2. Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

e-Paper raw panels comparing

Weight: 0.036 kg

Quick Overview

  1. 2.7inch e-Paper HAT x1
  2. RPi screws pack (2pcs) x2
  3. PH2.0 20cm 8Pin x1
