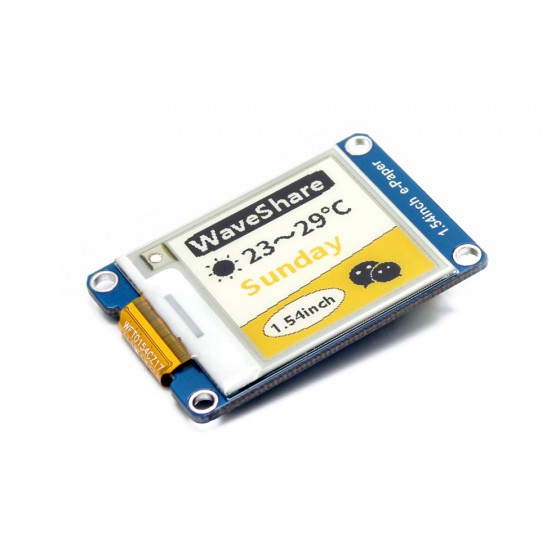

152x152, 1.54inch E-Ink display module, yellow/black/white three-color, SPI interface
Overview
This is an E-Ink display module, 1.54inch, 152x152 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.
Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
Features
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- SPI interface, for connecting with controller boards like Raspberry Pi/Nucleo, etc.
- Onboard voltage translator, compatible with 3.3V/5V MCUs
- Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/STM32)
Specifications
- Operating voltage: 3.3V/5V
- Interface: 3-wire SPI, 4-wire SPI
- Outline dimension: 31.8mm × 37.32mm × 1.05mm
- Display size: 27.51mm × 27.51mm
- Dot pitch: 0.181 × 0.181
- Resolution: 152 × 152
- Display color: yellow, black, white
- Grey level: 2
- Full refresh time: 27s
- Refresh power: 26.4mW(typ.)
- Standby power: <0.017mW
- Viewing angle: >170°
Interface
SYMBOL | DESCRIPTION |
---|---|
VCC | 3.3V/5V |
GND | Ground |
DIN | SPI MOSI pin |
CLK | SPI SCK pin |
CS | SPI chip selection, low active |
DC | Data/Command selection (high for data, low for command) |
RST | External reset, low active |
BUSY | Busy status output, low active |
Dimensions
Development Resources
Wiki : www.waveshare.com/wiki/1.54inch_e-Paper_Module_(C)
Selection Guide
Part Number | Colors | Grey Scale | Resolution | Display size (mm) | Outline Dimension (mm) | Full Refresh Time (s) | Partial Refresh1 | Pi Head-er2 | Flexi-ble | Interface |
---|---|---|---|---|---|---|---|---|---|---|
1.02inch e-Paper Module | black, white | 2 | 128×80 | 21.76 × 14.00 | 42.0 × 27.0 | 2 | √ | SPI | ||
1.54inch e-Paper Module | black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 2 | √ | SPI | ||
1.54inch e-Paper Module (B) | red, black, white | 2 | 200×200 | 27.60 × 27.60 | 48.0 × 33.0 | 14 | SPI | |||
1.54inch e-Paper Module (C) | yellow, black, white | 2 | 152×152 | 27.51 × 27.51 | 48.0 × 33.0 | 27 | SPI | |||
1.64inch e-Paper Module (G) | red, yellow, black, white | 2 | 168×168 | 29.568 × 29.568 | 47 × 38 | 12 | SPI | |||
2.13inch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 2 | √ | √ | SPI | |
2.13inch e-Paper HAT+ | black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.5 | 2 | √ | √ | SPI | |
2.13inch e-Paper HAT (B) | red, black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 15 | √ | SPI | ||
2.13inch e-Paper HAT (C) | yellow, black, white | 2 | 212×104 | 48.55 × 23.70 | 65.0 × 30.2 | 15 | √ | SPI | ||
2.13inch e-Paper HAT (D) | black, white | 2 | 212×104 | 48.55 × 23.70 | 59.2 × 29.2 | 2 | √ | √ | √ | SPI |
2.13inch e-Paper HAT (G) | red, yellow, black, white | 2 | 250×122 | 48.55 × 23.70 | 65.0 × 30.2 | 25 | √ | SPI | ||
2.13inch Touch e-Paper HAT | black, white | 2 | 250×122 | 48.55 × 23.70 | 69.15 × 38.90 | 2 | √ | √ | SPI | |
2.13inch Touch e-Paper HAT (with case) | black, white | 2 | 250×122 | 48.55 × 23.70 | 72.20 × 41.90 | 2 | √ | √ | SPI | |
2.15inch e-Paper HAT+ (B) | red, black, white | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 23 | √ | SPI | ||
2.15inch e-Paper HAT+ (G) | red, yellow, black, white | 2 | 296×160 | 48.10 × 26.00 | 65.0 × 34.0 | 20 | √ | SPI | ||
2.36inch e-Paper Module (G) | red, yellow, black, white | 2 | 296×168 | 52.096 × 29.568 | 69.5 × 38.5 | 12 | SPI | |||
2.66inch e-Paper Module | black, white | 2 | 296×152 | 30.704 × 60.088 | 37.0 × 83.5 | 6 | √ | SPI | ||
2.66inch e-Paper Module (B) | red, black, white | 2 | 296×152 | 30.704 × 60.088 | 37.0 × 83.5 | 15 | SPI | |||
2.66inch e-Paper Module (G) | red, yellow, black, white | 2 | 360×184 | 60.05 × 30.69 | 85.0 × 38.5 | 26 | SPI | |||
2.7inch e-Paper HAT | black, white | 4 | 264×176 | 57.29 × 38.19 | 85.0 × 56.0 | 6 | √ | √ | SPI | |
2.7inch e-Paper HAT (B) | red, black, white | 2 | 264×176 | 57.288 × 38.192 | 73.5 × 56.0 | 15 | √ | SPI | ||
2.9inch e-Paper Module | black, white | 4 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 3 | √ | SPI | ||
2.9inch e-Paper Module (B) | red, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | |||
2.9inch e-Paper Module (C) | yellow, black, white | 2 | 296×128 | 66.89 × 29.05 | 89.5 × 38.0 | 15 | SPI | |||
2.9inch e-Paper HAT (D) | black, white | 2 | 296×128 | 66.90 × 29.06 | 79.0 × 36.7 | 2 | √ | √ | √ | SPI |
2.9inch Touch e-Paper HAT | black, white | 4 | 296×128 | 66.89 × 29.05 | 89.10 × 42.70 | 3 | √ | √ | SPI | |
3inch e-Paper Module (G) | red, yellow, black, white | 2 | 400×168 | 70.4 × 29.568 | 88.5 × 41 | 12 | SPI | |||
3.52inch e-Paper HAT | black, white | 2 | 360×240 | 74.51 × 49.67 | 86.5 × 57 | 1.5 | √ | SPI | ||
3.52inch e-Paper HAT (B) | red, black, white | 2 | 360×240 | 74.51 × 49.67 | 86.5 × 57 | 16 | √ | SPI | ||
3.7inch e-Paper HAT | black, white | 4 | 480×280 | 47.32 × 81.12 | 58.0 × 96.5 | 3 | √ | √ | SPI | |
4inch e-Paper HAT+ (E) | E6 full color | 2 | 600×400 | 84.6 × 56.40 | 101.00 × 68.00 | 19 | √ | SPI | ||
4.01inch e-Paper HAT (F) | 7-Color | 2 | 640×400 | 86.40 × 54.00 | 98.5 × 70.0 | 30 | √ | SPI | ||
4.2inch e-Paper Module | black, white | 4 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 5 | √ | SPI | ||
4.2inch e-Paper Module (B) | red, black, white | 2 | 400×300 | 84.80 × 63.60 | 103.0 × 78.5 | 15 | SPI | |||
4.26inch e-Paper HAT | black, white | 4 | 800×480 | 92.80 × 55.68 | 107.0 × 64.0 | 4 | √ | √ | SPI | |
4.3inch e-Paper UART Module | black, white | 4 | 800×600 | 88.00 × 66.00 | 118.0 × 75.0 | 1.5 | UART | |||
4.37inch e-Paper Module (G) | red, yellow, black, white | 2 | 512×368 | 90.11 × 64.77 | 101.5 × 81.5 | 14 | SPI | |||
5.65inch e-Paper Module (F) | 7-Color | 2 | 600×448 | 114.9 × 85.8 | 138.5 × 100.5 | <35 | SPI | |||
5.79inch e-Paper Module | black, white | 4 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 3.5 | √ | SPI | ||
5.79inch e-Paper Module (B) | red, black, white | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 24 | SPI | |||
5.79inch e-Paper Module (G) | red, yellow, black, white | 2 | 792×272 | 139.00 × 47.74 | 152.50 × 58.50 | 21 | SPI | |||
5.83inch e-Paper HAT | black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 5 | √ | SPI | ||
5.83inch e-Paper HAT (B) | red, black, white | 2 | 648×480 | 119.232 × 88.320 | 125.4 × 99.5 | 20 | √ | SPI | ||
6inch e-Paper HAT | black, white | 16 | 800×600 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | √ | √ | USB/SPI/ I80 |
|
6inch HD e-Paper HAT | black, white | 16 | 1448×1072 | 122.4 × 90.6 | 138.4 × 101.8 | <1 | √ | √ | USB/SPI/ I80 |
|
7.3inch E-Paper HAT (E) | E6 full color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 12 | √ | SPI | ||
7.3inch E-Paper HAT (F) | 7-Color | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 35 | √ | SPI | ||
7.3inch E-Paper HAT (G) | red, yellow, black, white | 2 | 800×480 | 160 × 96 | 170.2 × 111.2 | 16 | √ | SPI | ||
7.5inch e-Paper HAT | black, white | 4 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 4 | √ | √ | SPI | |
7.5inch HD e-Paper HAT | black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 5 | √ | SPI | ||
7.5inch e-Paper HAT (B) | red, black, white | 2 | 800×480 | 163.20 × 97.92 | 170.2 × 111.2 | 26 | √ | √ | SPI | |
7.5inch HD e-Paper HAT (B) | red, black, white | 2 | 880×528 | 163.24 × 97.94 | 170.2 × 111.2 | 21 | √ | SPI | ||
7.5inch e-Paper HAT (C) | yellow, black, white | 2 | 640×384 | 163.20 × 97.92 | 170.2 × 111.2 | 16 | √ | SPI | ||
7.8inch e-Paper HAT | black, white | 16 | 1872×1404 | 158.18 × 118.64 | 173.8 × 127.6 | <1 | √ | √ | USB/SPI/ I80 |
|
9.7inch e-Paper HAT | black, white | 16 | 1200×825 | 202.8 × 139.43 | 218.8×156.4 | <1 | √ | √ | USB/SPI/ I80 |
|
10.3inch e-Paper HAT | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 216.7 × 174.4 | <1 | √ | √ | USB/SPI/ I80 |
|
10.3inch e-Paper HAT (D) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 227.7 × 165.8 | <1 | √ | √ | √ | USB/SPI/ I80 |
10.3inch e-Paper HAT (G) | black, white | 16 | 1872×1404 | 209.66 × 157.25 | 225.70 × 183.40 | <1 | √ | √ | USB/SPI/ I80 |
|
12.48inch e-Paper Module | black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | <8 | √ | SPI | ||
12.48inch e-Paper Module (B) | red, black, white | 2 | 1304×984 | 252.98 × 190.90 | 280.0 × 229.5 | 37 | √ | SPI | ||
13.3inch e-Paper HAT | black, white | 16 | 1600×1200 | 270.40 × 202.80 | 285.80 × 213.65 | <1 | √ | √ | USB/SPI/ I80 |
|
13.3inch e-Paper HAT (B) | red, black, white | 2 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 22 | √ | √ | SPI | |
13.3inch e-Paper HAT (K) | black, white | 4 | 960×680 | 275.52 × 195.16 | 286.32 × 212.26 | 5 | √ | √ | SPI | |
13.3inch e-Paper HAT (E) | E6 full color | 2 | 1600×1200 | 270.40 × 202.80 | 284.70 × 208.80 | 19 | √ | SPI |
- It usually takes about 0.3s for partial refresh
- Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Weight: 0.024 kg
