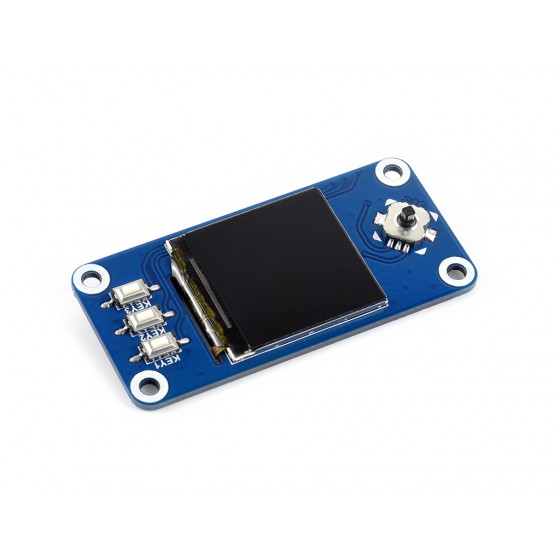

240x240, 1.3inch IPS LCD display HAT for Raspberry Pi

SKU: 14972
Part Number: 1.3inch LCD HAT
Brand: Waveshare
UPC: 614961952317

$13.99
$13.3920+
$12.99100+

Description

Details

1.3inch IPS LCD display HAT for Raspberry Pi, 240x240 pixels, SPI interface

Overview

This is an IPS LCD display HAT for Raspberry Pi, 1.3inch diagonal, 240x240 pixels, with embedded controller, communicating via SPI interface.

Trying to add a control interface for your Pi? This compact display would be the ideal choice.

1.3inch LCD HAT demo

Features

  • Standard Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+
  • IPS screen, wide viewing angle, better display
  • High definition in small size
  • 1x joystick, 3x pushbuttons, handy and useful
  • Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

Specifications

  • Driver: ST7789
  • Interface: SPI
  • Display color: RGB, 65K color
  • Resolution: 240x240
  • Backlight: LED
  • Operating voltage: 3.3V

Interface

SYMBOL Raspberry Pi PIN (BCM) DESCRIPTION
KEY1 P21 Button 1/GPIO
KEY2 P20 Button 2/GPIO
KEY3 P16 Button 3/GPIO
Joystick Up P6 Joystick Up
Joystick Down P19 Joystick Down
Joystick Left P5 Joystick Left
Joystick Right P26 Joystick Right
Joystick Press P13 Joystick Press
SCLK P11/SCLK SPI clock input
MOSI P10/MOSI SPI data input
DC P25 Data/Command selection (high for data, low for command)
CS P8/CE0 Chip selection, low active
RST P27 Reset, low active
BL P24 Backlight

Dimensions

1.3inch LCD HAT dimensions

Development Resources

Wiki : www.waveshare.com/wiki/1.3inch_LCD_HAT

Package Content

Weight: 0.014 kg

Quick Overview

  1. 1.3inch LCD HAT x1
  2. RPi screws pack (2pcs) x1
