Raspberry Pi 2 Model B

SKU: 10546
Part Number: RPi2 B

$39.99 DISCONTINUED
$39.492+
$39.093+
$38.794+

Related Products:

Description

Details

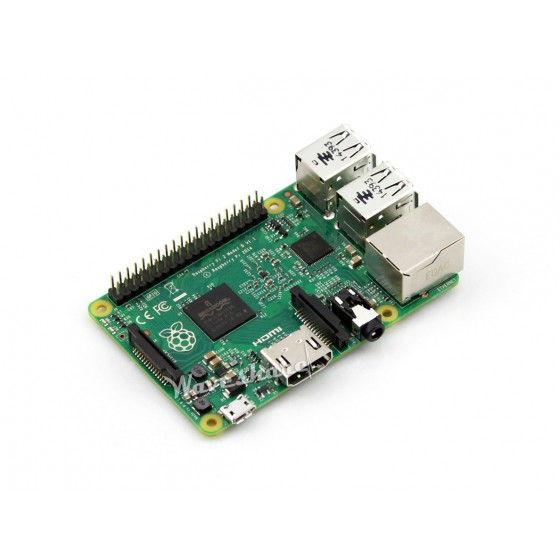

Raspberry Pi 2 Model B, the Second Generation Pi

Overview

The Raspberry Pi 2 Model B is the second generation Raspberry Pi. It replaced the original Raspberry Pi 1 Model B+ in February 2015. Compared to the Raspberry Pi 1, it features:

  • A 900MHz quad-core ARM Cortex-A7 CPU
  • 1GB RAM
  • Supports more OS, includes Windows 10

Features

  1. Broadcom BCM2836 900MHz quad-core ARM Cortex-A7 CPU with VideoCore IV dual-core GPU
  2. GPU provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode
  3. GPU is capable of 1Gpixel/s, 1.5Gtexel/s or 24 GFLOPs of general purpose compute and features a bunch of texture filtering and DMA infrastructure
  4. 1GB RAM
  5. Boots from Micro SD card, supports Linux distros such as Fedora, Debian and ArchLinux
  6. 10/100 wired Ethernet
  7. HDMI output
  8. USB 2.0 interface x 4
  9. 4-pole 3.5mm stereo audio jack with composite video output
  10. Micro SD card slot
  11. Powered by 5v micro USB
  12. Camera connector
  13. 40-pin 2.54mm expansion pinheader
  14. Dimensions: 85mm x 56mm x 17mm

Development Resources

Wiki : www.waveshare.com/wiki/RPi2_B

Weight: 0.099 kg

Quick Overview

  1. Raspberry Pi 2 Model B x 1
