Raspberry Pi 3 Model B - Package C

SKU: 11607
Part Number: RPi3 B Package C

$78.99 DISCONTINUED
$77.792+
$76.993+
$76.594+

Related Products:

Description

Details

Raspberry Pi 3 Model B Development Kits, Camera, Mini Wireless Keyboard, Micro SD Card, etc.

Overview

The Raspberry Pi 3 is the third generation Raspberry Pi. It replaced the Raspberry Pi 2 Model B in February 2016. Compared to the Raspberry Pi 2 it has:

  • A 1.2GHz 64-bit quad-core ARMv8 CPU
  • 802.11n Wireless LAN
  • Bluetooth 4.1 & Bluetooth Low Energy (BLE)

Raspberry Pi 3 Features

  • BCM2837B0, 1.2GHz 64-bit quad-core ARM Cortex-A53
  • 1GB RAM
  • 10/100 Ethernet port
  • 802.11n WiFi NIC
  • Bluetooth 4.1 & Bluetooth Low Energy (BLE)
  • HDMI port
  • USB 2.0 interface x 4
  • Micro SD card slot
  • Combined 3.5mm audio jack and composite video
  • 40-pin GPIO interface
  • Camera interface (CSI)
  • Display interface (DSI)
  • Upgraded power management, supports more peripherals (requires a 2.5A power supply or above)

Connecting Raspberry Pi 3 B and Accessories

Development Resources

Wiki : www.waveshare.com/wiki/RPi3_B_Package_C

Raspberry Pi 3 Selection Guide

Package ContentsProducts
ItemDescriptionAcce. AAcce. BPackage BAcce. CPackage CAcce. DPackage DAcce. EPackage EAcce. FPackage FAcce. αPackage α
RPi3 B Raspberry Pi 3 Model B
Micro SD Card 16GB 16GB Miro SD Card, class 10
5V 3A Power Adapter Provides 5V 3A power supply, micro USB plug
Pioneer600 Expansion Board, provides expansion interfaces and onboard components
DS18B20 Temperature sensor
Infrared Remote Controller IR control
USB Camera 0307  USB camera
Mini Wireless Keyboard  Mini wireless keyboard with touchpad
HDMI to VGA Convertor For working with VGA monitors
ARPI600 Raspberry Pi to Arduino
Sensors Pack Various sensors in one pack
5inch HDMI LCD (B) 5inch HDMI interface touch screen LCD
Bicolor Case for 5inch LCD Type B Case and holder
7inch HDMI LCD (C) 7inch HDMI interface touch screen LCD, high-definition
Bicolor Case for 7inch LCD Case and holder
RPi Camera (B) Raspberry Pi camera, adjustable focus
AlphaBot Robotic platform (line tracking, obstacle avoidance, speed measuring)
SG90 servo servo and 2 DOF pan head
DVK512 Expansion Board, provides expansion interfaces and onboard components
3.5inch RPi LCD (A) 3.5inch touch screen LCD
PCF8591 AD DA Board 8-bit AD/DA module
L3G4200D Board Angular rate sensor
LSM303DLHC Board e-compass
Mix Board Buzzer, Joystick, Infrared Receiver, Temperature Sensor
Logic Level Converter 8ch Logic Level Bus Transceiver

Weight: 0.522 kg

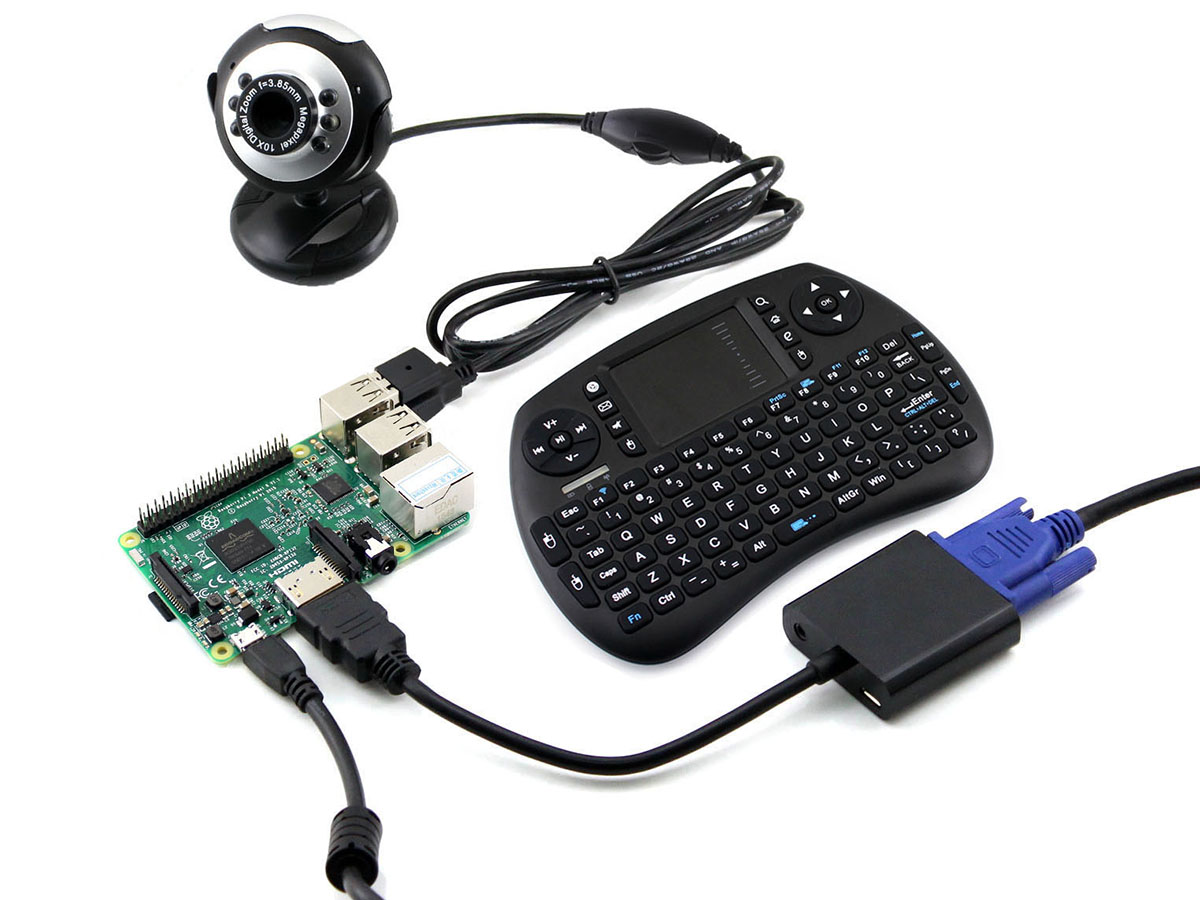

Quick Overview

  1. Raspberry Pi 3 Model B x 1
  2. Micro SD Card 16GB x1
  3. USB Camera 0307 x 1

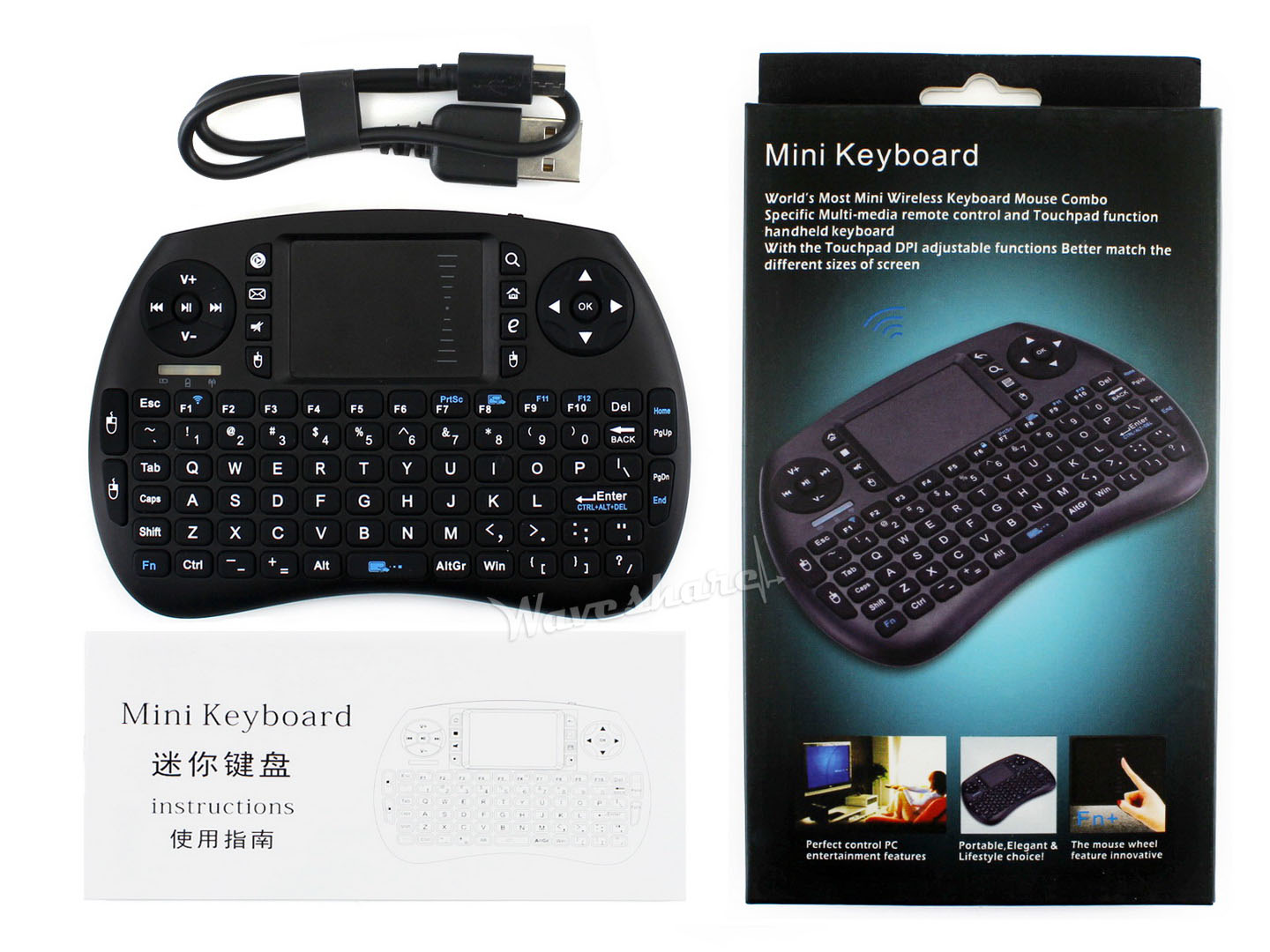

  4. Mini Wireless Keyboard x 1

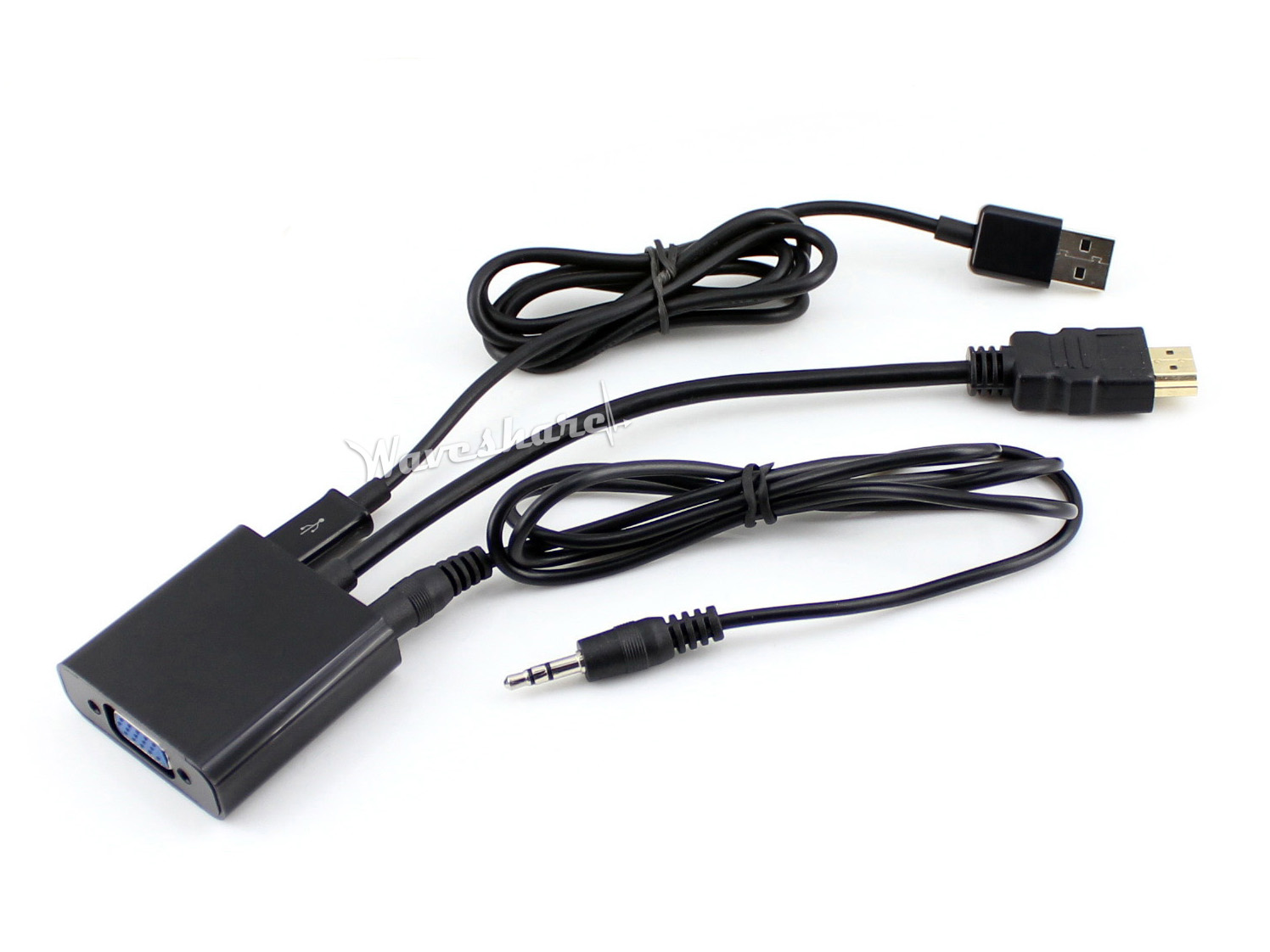

  5. HDMI Male to VGA Female Cable 0.2m with Audio and Power x 1
  6. Power adapter US standard 5V/3A micro x1
  7. Ethernet Cable x 1
