DoWatch, A DIY watch, software & hardware open sources

Overview

This is a totally hand-made watch, but wait... we won't made it for you. The only one that can bring it to life, is YOU!

Functionality

Default functions :

  • Displays Time, Calendar, and Temperature
  • Woken-up by shaking (configurable)
  • Custom reminder

More :

  • Step counter & Timer (coming soon in V2.0)
  • Customized functions

PS : all the functions can be modified based on the open source program, up to you.

Features

  • Case : actually, there's no case. It is formed by stacked PCBs.
  • Gesture sensor : steel ball combined with PCB copper pads. ZERO power consumption if no gesture detected, not like any other sensor.
  • Button : pressure-sensitive buttons, achieved by copper pads on two adjacent PCBs with very little clearance.
  • Monitor : 1.3inch 128x64 OLED.
  • RTC : high precision RTC chip RTC8025.
  • Temperature sensor : high accuracy sensor LM75.
  • Battery : wireless magnetic charger & rechargeable lithium battery, up to 15-30 days standby time after fully charged.
  • Strap : standard 22mm strap horn, easy to change the strap.

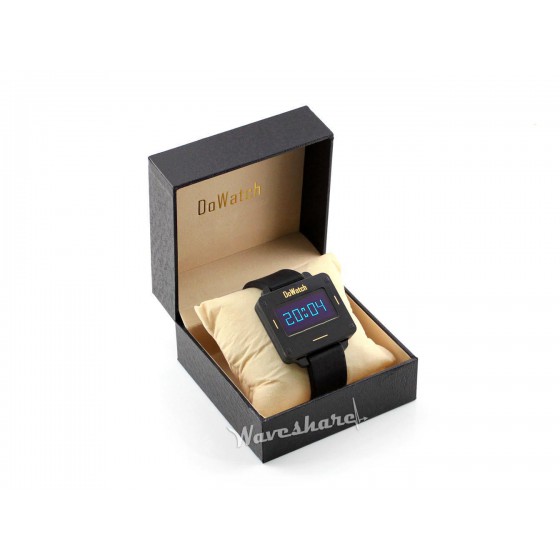

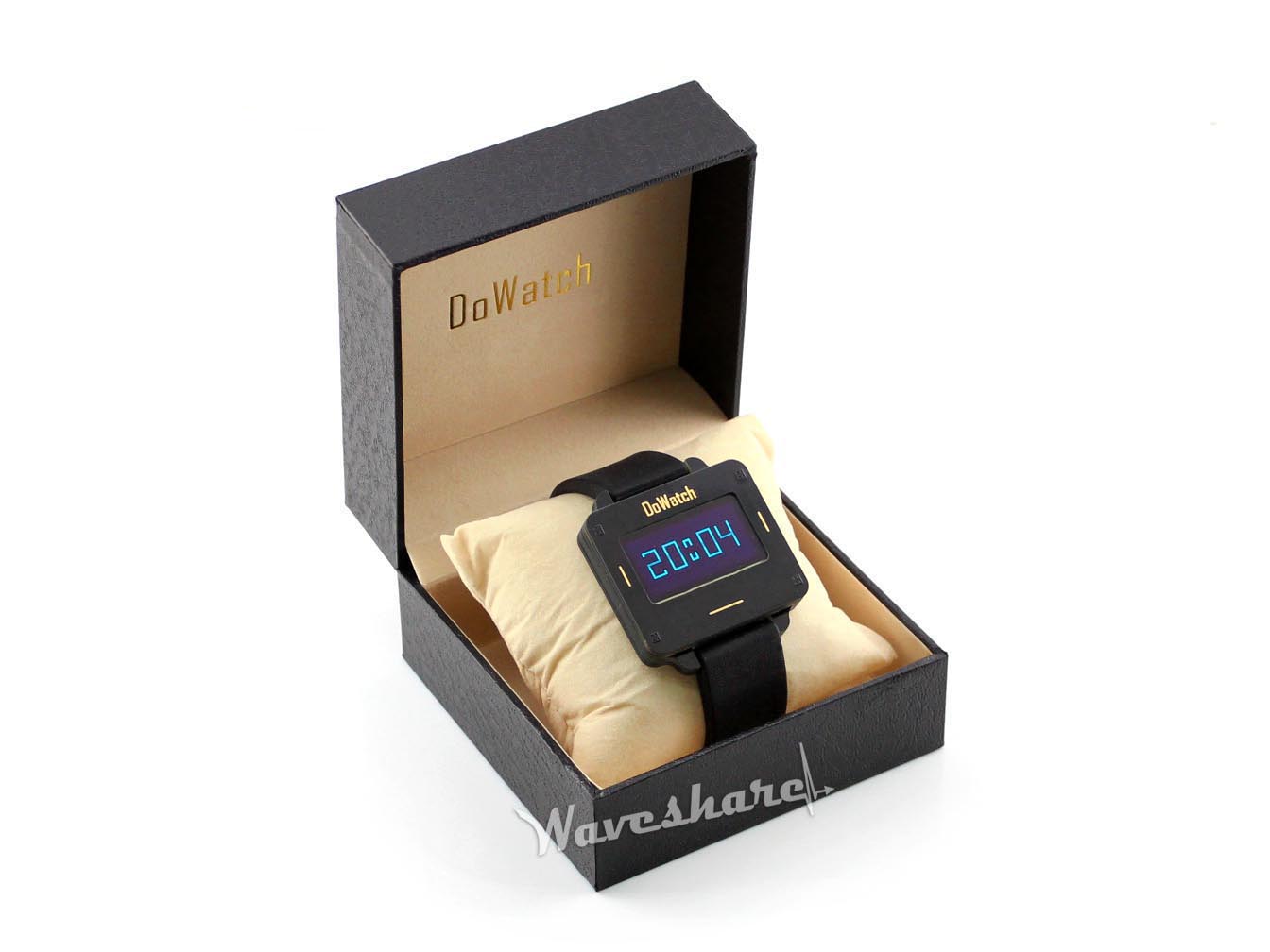

  • Packing : LUXURY.

Specifications

  • Idle power consumption : 4uA
  • Time display power : about 10mA
  • Full display power : about 30mA
  • Lithium battery capacity : 3.6V 40mA/h
  • Dimension with strap horn : 45 x 49 x 9mm
  • Dimension without strap horn : 45 x 39 x 9mm
  • Total length with strap : 241mm

Resources

The DoWatch comes with resources listed below :

  • Soldering and Installing Instruction
  • Open source codes, customization development tutorial video
  • Official real-time upgrade program (help you to get the new released function timely, for purchaser ONLY)

Photos



Note :

  • For programming the DoWatch, you need a serial module : CP2102 USB UART Board (mini) OR CP2102 USB UART Board (type A)
  • This is a DIY kit, soldering tools and soldering experience for LQFP chips are required.     (If there's any problem, we are happy to solder the MCU and OLED for you, just leave us a message while placing an order)
  • Double-sides tape, clamps, are also needed for installation but not included in the kit.
  • The default  program is still under developing, functions like timer/step-counter are unavailable for the moment, and maybe there are some BUGs (we'll fix them on the follow versions)
  • If any component is opened or soldered, which means the kit can not be sold anymore, therefore, refund or return won't be accepted, hoping for your understanding.

Weight: 0.249 kg

Quick Overview

Package Contains

  • PCB x 10 (Watch + Magnetic Charger)
  • MCU STC12LE5A60S2 x 1 (with the latest program)
  • RTC Chip RTC8025 x 1
  • Temperature sensor LM75 x 1
  • Self-recovery fuse x 2 (1 spare)
  • Charger controller chip x 1
  • MICRO USB connector x 1
  • 104 capacitor x 10 (1 spare)
  • 106 capacitor x 4 (1 spare)
  • 1K resistor x 2 (1 spare)
  • 10K resistor x 3 (1 spare)
  • 1N4001/1N4148 diode x 2 (1 spare)
  • 0Ω resistor x 3 (1 spare)
  • Blue LED x 2 (1 spare)
  • Gravity ball x 2 (1 spare)
  • 2032 lithium battery 3.6V 40mA/h x 1
  • Magnet x 2
  • USB power cable  x 1
  • Strap and end-pin x 1
  • 1.3inch Blue/White OLED (random color) x 1
  • Manual x 1
  • Beautiful  box x 1
