NUCLEO-F303K8, STM32 Nucleo-32 development board

SKU: 11306
Part Number: NUCLEO-F303K8
Brand: ST

$19.99 DISCONTINUED
$19.292+
$18.893+
$18.494+

Description

Details

NUCLEO-F303K8, STM32 Nucleo-32 development board with STM32F303K8T6 MCU, supports Arduino connectivity

NUCLEO-F303K8 Description

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes with any STM32 microcontroller line in 32-pin packages, choosing from the various combinations of performance, power consumption and features.The Arduino™nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields.

The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo-32 board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

NUCLEO-F303K8 Key Features

  • STM32 microcontrollers in 32-pin packages
  • extension with Arduino™nano connectivity
  • mbed-enabled (http://mbed.org)
  • on-board ST-LINK/V2-1 debugger/programmer
  • USB reenumeration capability: three different interfaces supported on USB:
    • Virtual Com port
    • mass storage
    • debug port
  • flexible board power supply:
    • USB VBUS
    • external source
  • three LEDs:
    • USB communication (LD1), power LED (LD2), user LED (LD3)
  • reset push button
  • supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs (AC6 SW4STM32, ...)

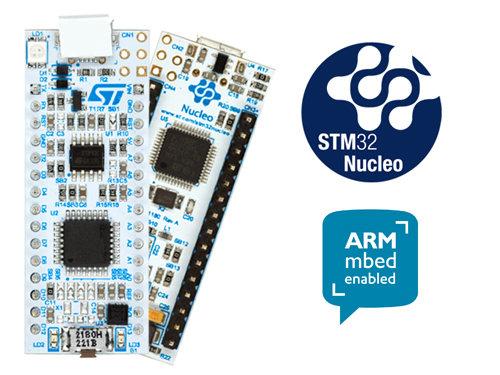

What's the NUCLEO-F303K8

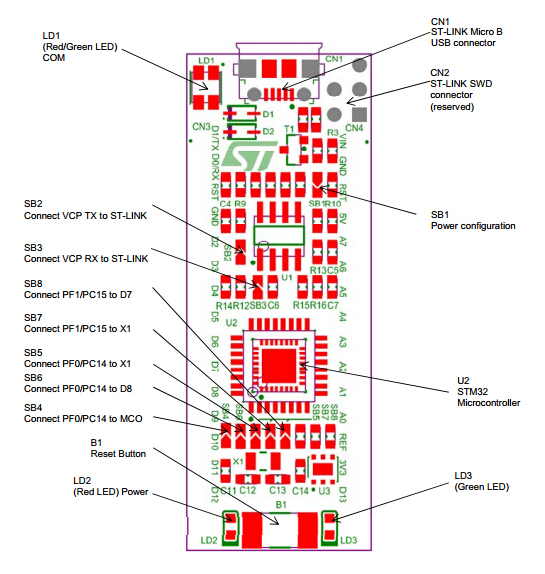

NUCLEO-F303K8 what's onboard

NUCLEO-F303K8 Dimensions

NUCLEO-F303K8 board dimensions

Development Resources

Wiki : www.waveshare.com/wiki/NUCLEO-F303K8

Weight: 0.042 kg

Quick Overview

  1. NUCLEO-F303K8 × 1
