MarsBoard RK3066, mini PC

Overview

The MarsBoard RK3066 is a flexible Designed development board powered by the popular Rockchip dual core SOC combining a power dual core ARM Cortex A9 CPU and Quad core Mali-400 MP GPU.

The MarsBoard RK3066 consists of a base board and and a CPU module, comes with various interfaces like USB, HDMI, USB Debug serial, Ethernet, WiFi, MicroSD slot, LCD connectors, Audio Codec, Camera 20 pin extended port.

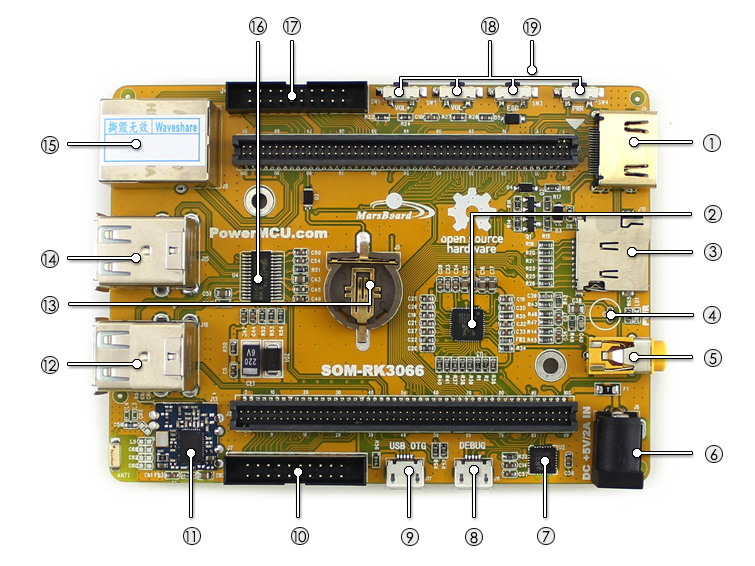

What's on the Base Board

1. HDMI A Type interface
2. Audio Codec IC: ALC5631Q
3. Micro SD card (TF card) slot
4. Microphone (not soldered)
5. Heardphone output
6. Power supply: 5V/2A
7. DEBUG: CP2102
8. Micro USB DEBUG port
9. Micro USB OTG port
10. Expansion header
11. WiFi module
12. 2 x USB 2.0 Host port
13. CR1220 RTC battery holder
14. 2 x USB 2.0 Host port
15. 10/100M Ethernet RJ45 connector
16. USB 2.0 HUB IC: FE1.1S
17. Expansion header: Camera CIF interface
18. User keys (from left): VOL+ (Reset), VOL-, ESC, Power KEY
19. LCD interface

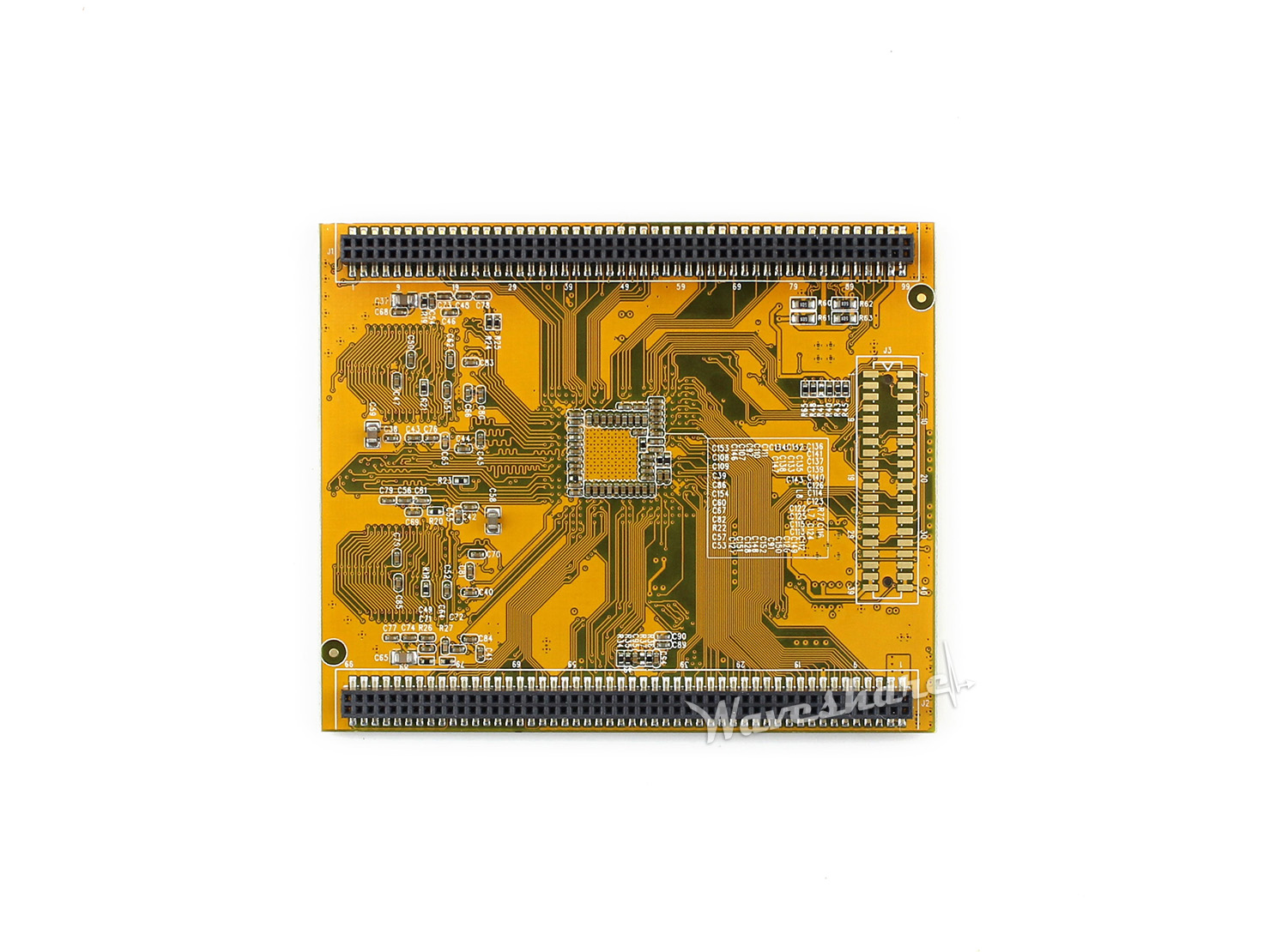

What's on the CM-RK3066

1. Rockchip RK3066
• CPU: ARM Cortex A9 Dual core @1.6GHz
• GPU: Mali-400 MP Quad core @400Mhz
• 2D accelerator
• Media accel: 1080p decode/encode, h264 vp8 encode
• RAM types: DDR3, DDR2, LPDDR2, etc.
• Display outputs: 5 layers, 2 flat panel, HDMI 1.4a (3D)
• Camera: supports dual cameras
• Boot devices: NAND, eMMC, USB, serial
• DVFS (Dynamic Voltage and Frequency Scaling)
2. 1GB DDR3 SDRAM
3. 8GB Nand Flash & eMMC FLASH
4. Power management: TPS659102
5. TX indicator LED: for debugging
6. Power indicator LED
7. 10/100M Ethernet PHY: LAN8720A
8. J3 expansion: 20x2 pin 1.27MM
9. J2 expansion: 50x2 pin 1.27MM
10. J1 expansion: 50x2 pin 1.27MM

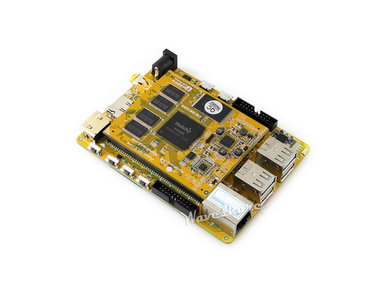

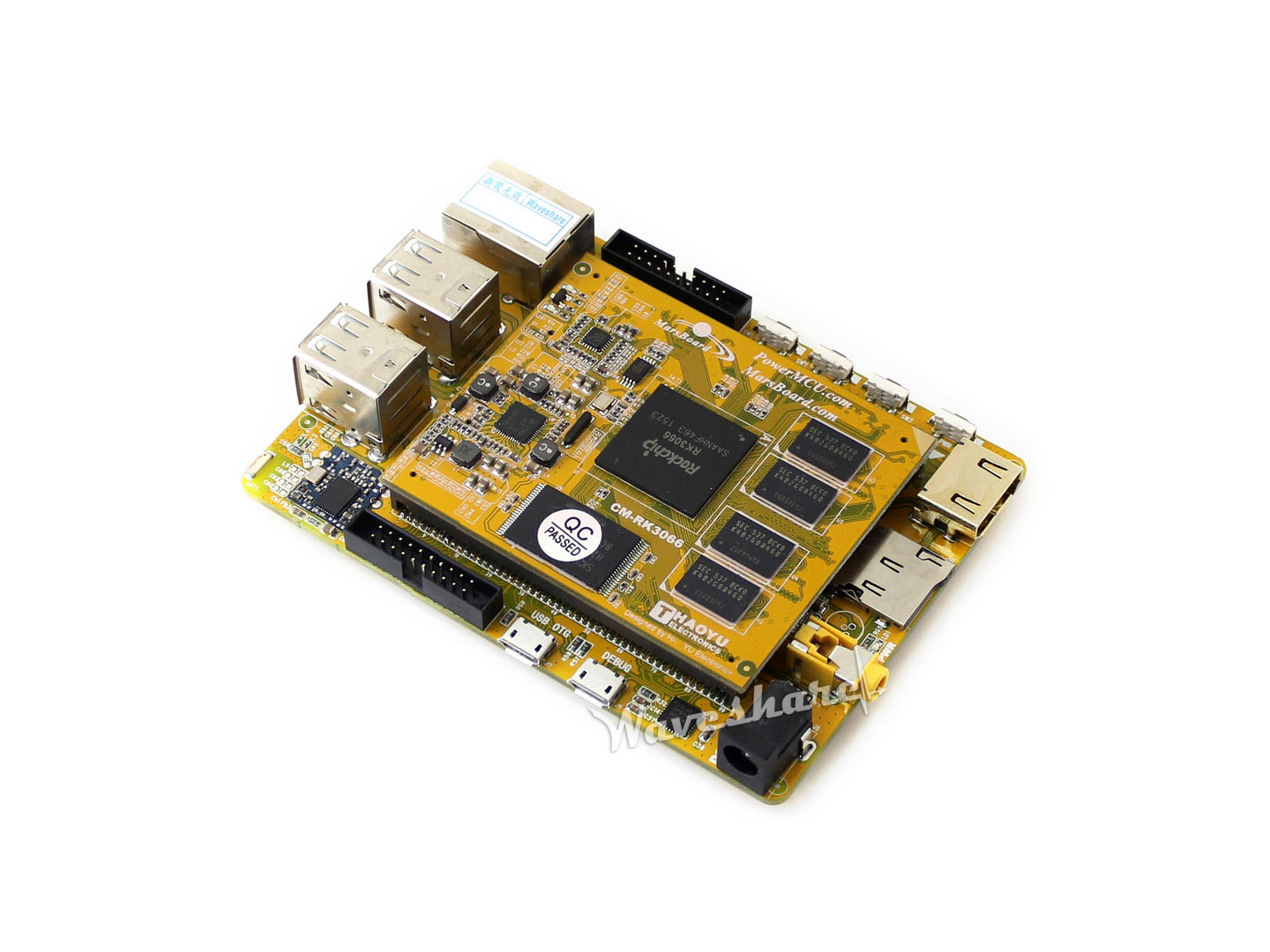

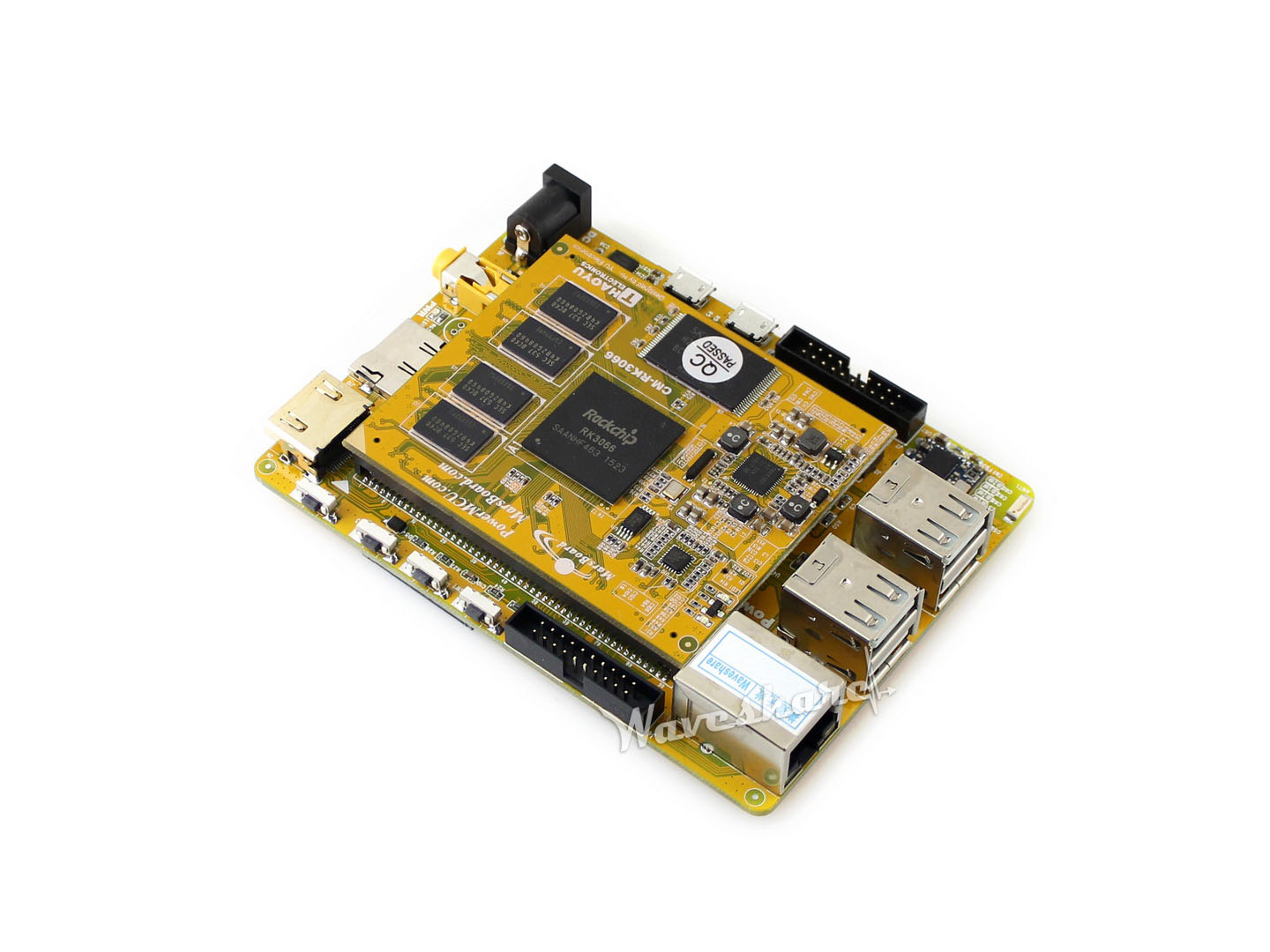

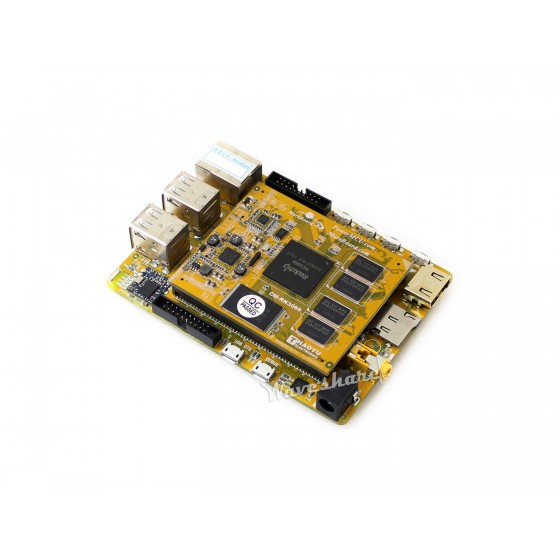

Photos

Development Resources

http://marsboard.org/marsboard_rk3066_download.html

Compatibility

MarsBoard RK3066 supports 7inch Capacitive Touch LCD (D), 10.1inch Capacitive Touch LCD (D).

1. CM-RK3066 x 1
2. SOM-RK3066 x 1
3. USB Type A Plug to Micro B Plug Cable x 1

1

2

3
