L3G4200D Board

SKU: 7199
Part Number: L3G4200D Board
Brand: Waveshare

$7.99 DISCONTINUED
$7.492+
$7.093+
$6.794+

Description

Details

three-axis digital output gyroscope, three-axis angular rate sensor module, I2C/SPI interface, L3G4200D on board

Overview

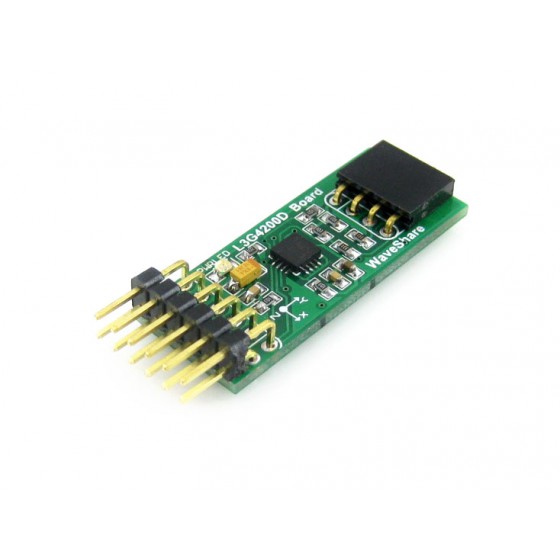

The L3G4200D Board is a low-power three-axis angular rate sensor module, provides I2C/SPI digital output interface.

The L3G4200D Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it's more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector.

Features

L3G4200D, I2C pinheader, SPI pinheader, I2C connector

Photos


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/L3G4200D_Board





Weight: 0.004 kg

Quick Overview

  • L3G4200D Board × 1
