E9 mini PC

Overview

The E9 mini PC is a high-performance computer based on Freescale's powerful i.MX 6 Quad ARM Cortex-A9 application processor.

Specifications

• PCB layer: 8 layers design
• Size: 100*72*20mm (connectors NOT included)
• Speaker amplifier output: supports 1W power output (8Ω loading)
• Power consumption: < 4W (5V-800mA, standalone startup peak)
• Boot modes: supports boot from eMMC or Micro SD card
• Power switch: supports one-key power on/off, and wake up from sleep

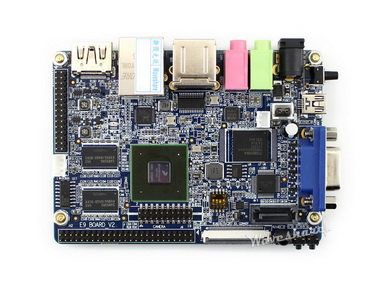

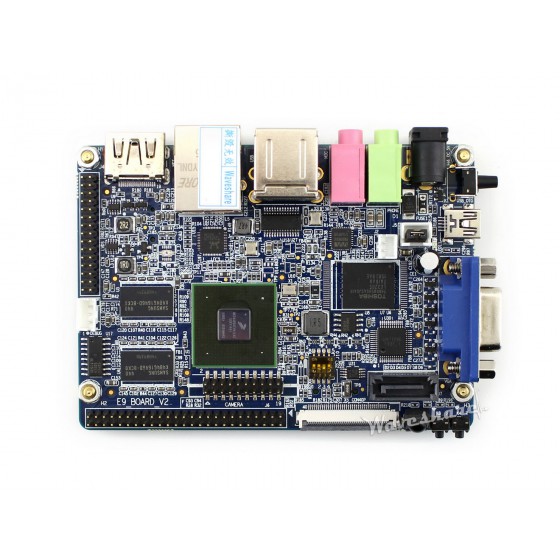

What's on Board

1. Processor
   • Freescale i.MX6Q Cortex-A9 Quad-core*1GHz
   • 1 MB L2 cache
   • 3D graphics with four shaders
   • Two 2D graphics engines
   • 64-bit DDR3 and 2-channel 32-bit LPDDR2
   • Integrated SATA-II
2. 2GB DDR3
3. 8GB eMMC Flash
4. UART1 interface
5. LVDS interface
   Dual LVDS 1080P
6. HDMI interface
   HDMI v1.4, 1080p @30fps high definition digital output
7. Ethernet interface
   RJ-45 connector, 10M/100M/1000M adaptive
8. USB interface
   2*USB_Host 2.0 connector, 2*extendable USB_Host
9. Audio interface
   MIC, PHONE, integrated amplifier interface
10. 5V jack
11. Power switch
12. USB_OTG interface
    USB_OTG 2.0 download interface
13. Spare external power supply interface
14. Speaker interface
15. VGA interface
    Up to 1920x1200 resolution
16. SATA II interface
    Standard 7-pin SATA II interface
17. User button
    2 buttons for sound volume control
18. LRDA infrared receiver
    Supports infrared remote control
19. LCD interface
    40-pin FPC connector
20. TF slot
21. BOOT mode selection
22. Camera interface
    Supports CMOS (stream media)
23. Expansion connector
    2*USB, 17*interruptable IO, 2*CAN, 3*UART, 1*SPI, 1*SDIO, 2*PWM

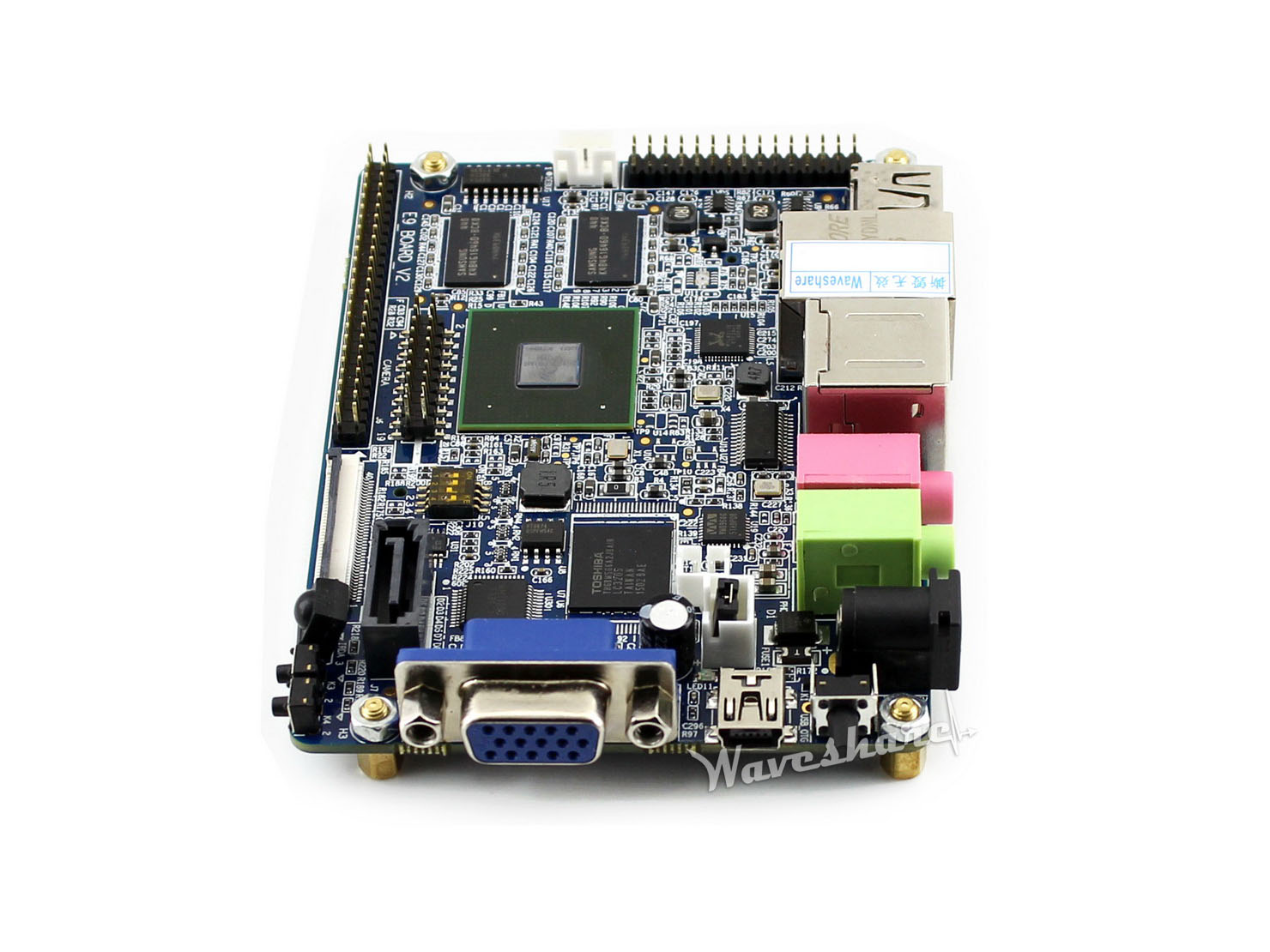

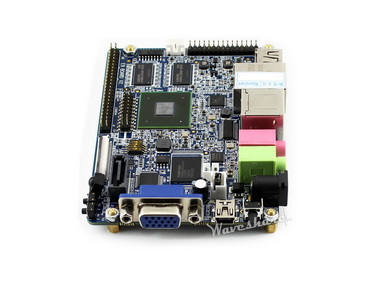

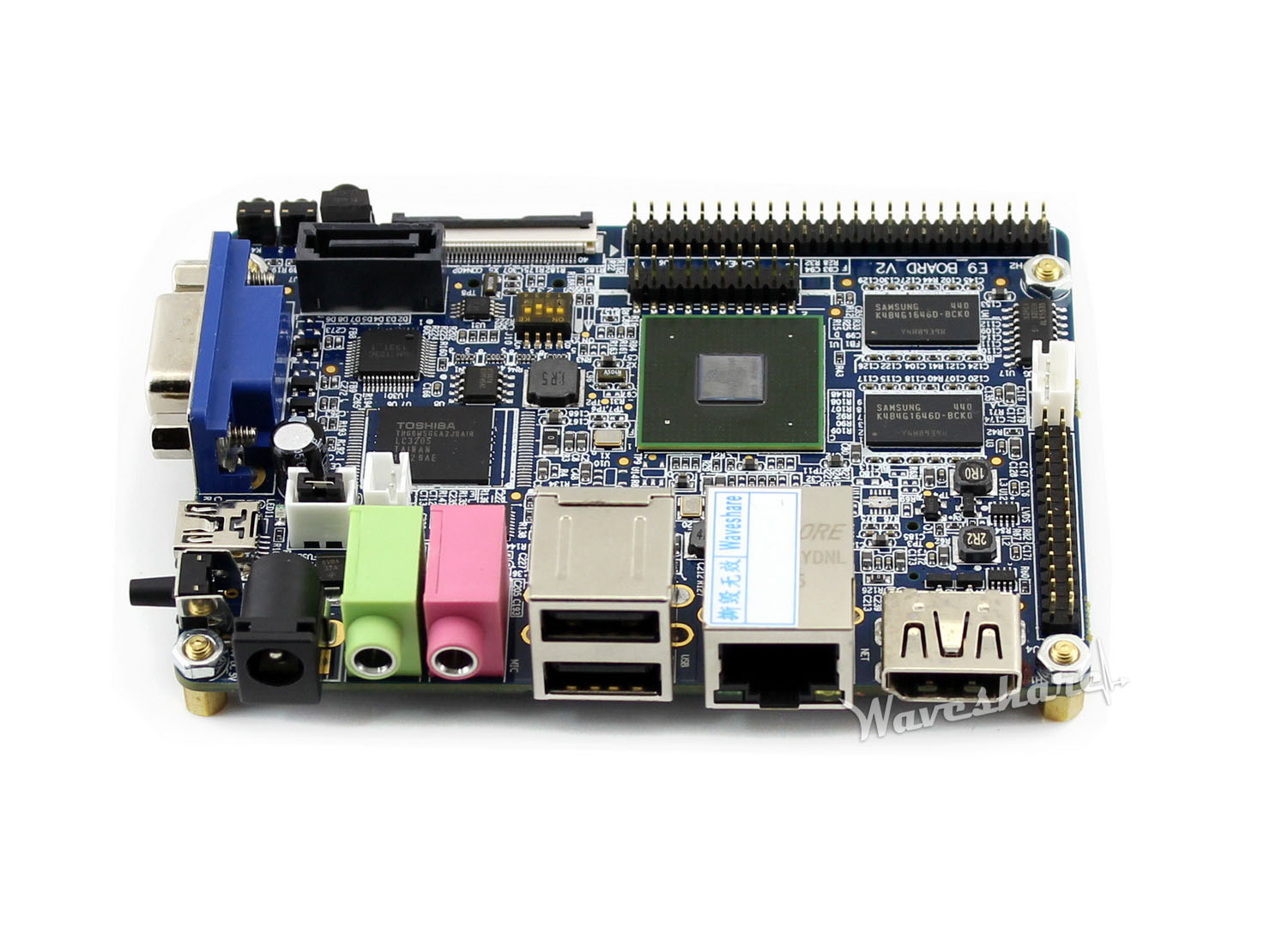

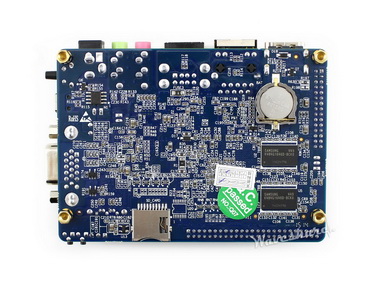

Photos

Development Resources

Wiki : www.waveshare.com/wiki/E9_mini_PC

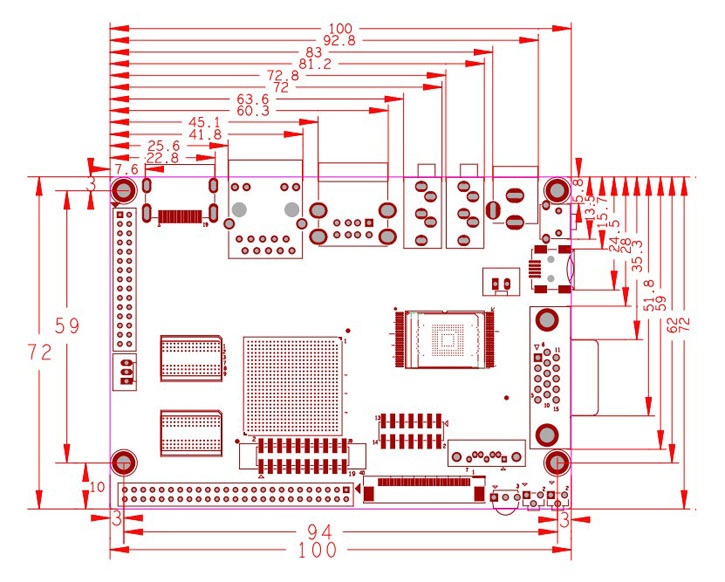

Dimensions

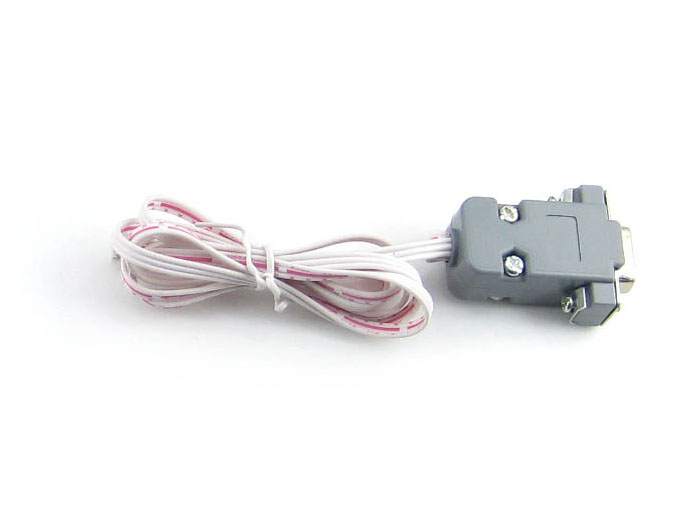

Package Contains

1

2

3

4

5
