NUCLEO-L053R8, STM32L NUCLEO Board

SKU: 9287
Part Number: NUCLEO-L053R8
Brand: ST

$23.99 DISCONTINUED
$23.292+
$22.793+
$22.494+

Description

Details

NUCLEO-L053R8, Development board for STM32 L0 series - with STM32L053R8 MCU, supports Arduino

Description

The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

Key Features

  • STM32 microcontroller with LQFP64 package
    • STM32L053R8T6 ( 64K FLASH )
  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • mbed-enabled (mbed.org)
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
    • Power management access point
  • Three LEDs
    • USB communication (LD1), user LED (LD2), power LED (LD3)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage
    • Debug port
  • Comprehensive free software HAL library including a variety of software examples
  • Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based IDEs

Photos

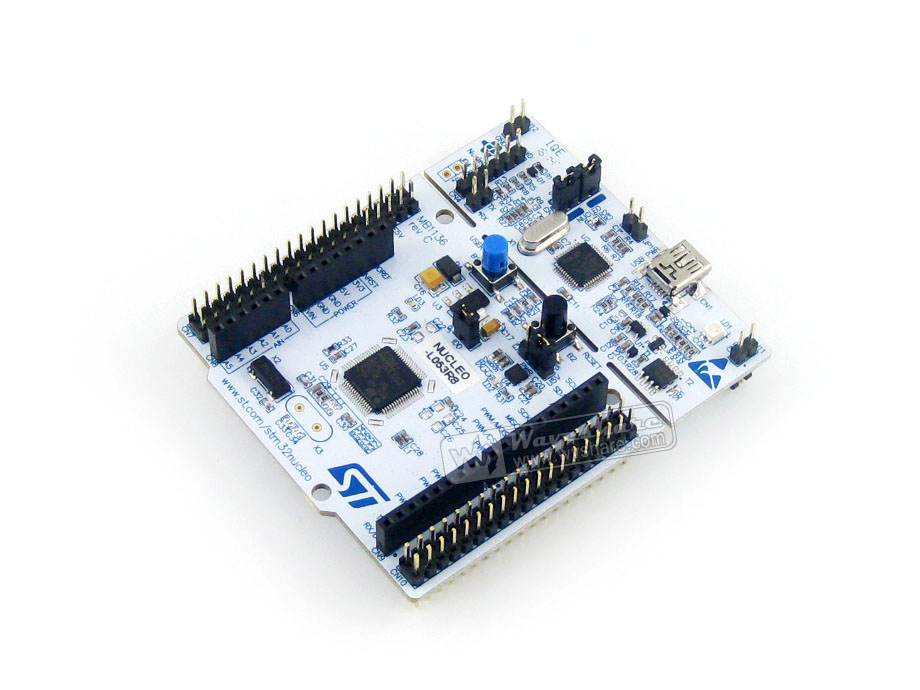

NUCLEO-L053R8 evaluation development board
NUCLEO-L053R8 Packaging Back View

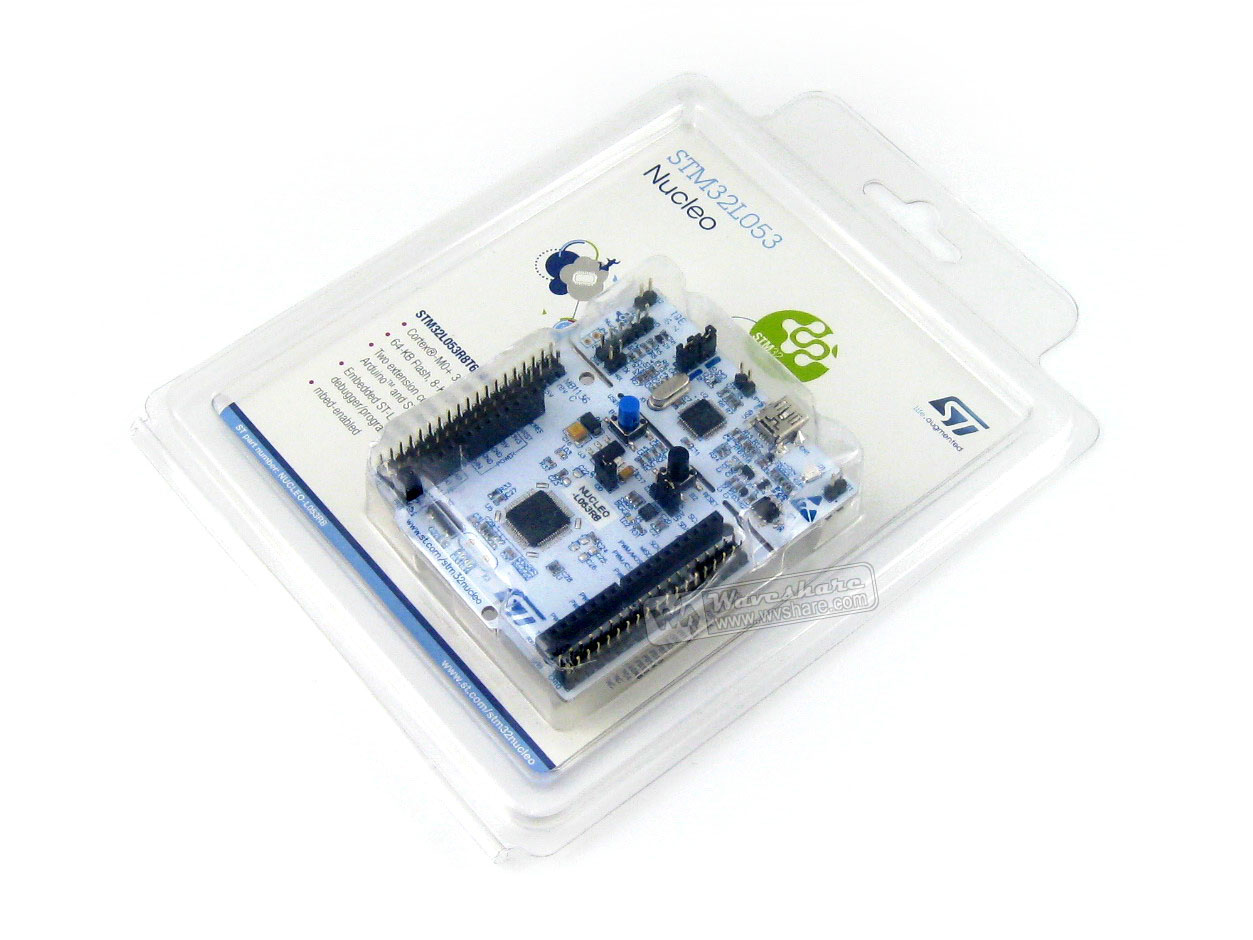

NUCLEO-L053R8 evaluation development board
NUCLEO-L053R8 Development Board
NUCLEO-L053R8 evaluation development board
NUCLEO-L053R8 Development Board Back View
NUCLEO-L053R8 evaluation development board
NUCLEO-L053R8 Development Board

What's Onboard

NUCLEO-L053R8 what's onboard


Dimensions

NUCLEO-L053R8 board dimensions


Design Support

For Technical Documentation, Software & Development Tools, Hardware Resources, view the NUCLEO-L053R8 official page on www.st.com to get more information: http://www.st.com/web/catalog/tools/FM116/SC959/SS1532/LN1847/PF260001

Wiki: www.waveshare.com/wiki/NUCLEO-L053R8

Weight: 0.076 kg

Quick Overview

  1. NUCLEO-L053R8 × 1
