NEO-7M-C

SKU: 8370
Part Number: NEO-7M-C

$10.99 DISCONTINUED
$9.8110+
$9.2250+
$8.99100+

Description

Details

GPS Module

Features

  • Compatible with the original NEO-7M module
  • Receiver type
    • 56 Channels
    • GPS L1 frequency (1575.42Mhz), C/A Code
    • SBAS: WAAS, EGNOS, MSAS
  • Accuracy
    • Position: 2.5m CEP
    • SBAS: 2.0m CEP
  • Navigation update rate: up to 5Hz (default 1Hz)
  • Acquisition
    • Cold starts: 27s (fastest)
    • Hot starts: 1s
  • Tracking Sensitivity: -162dBm
  • Oscillator: TCXO (+/-0.5PPM)
  • Protocols: NMEA (default), UBX binary
  • UART Baud Rate: 9600 only
  • Operating temp.: –40℃ to 85℃

Applications

  • GPS Navigator
  • Quadcopter Positioning

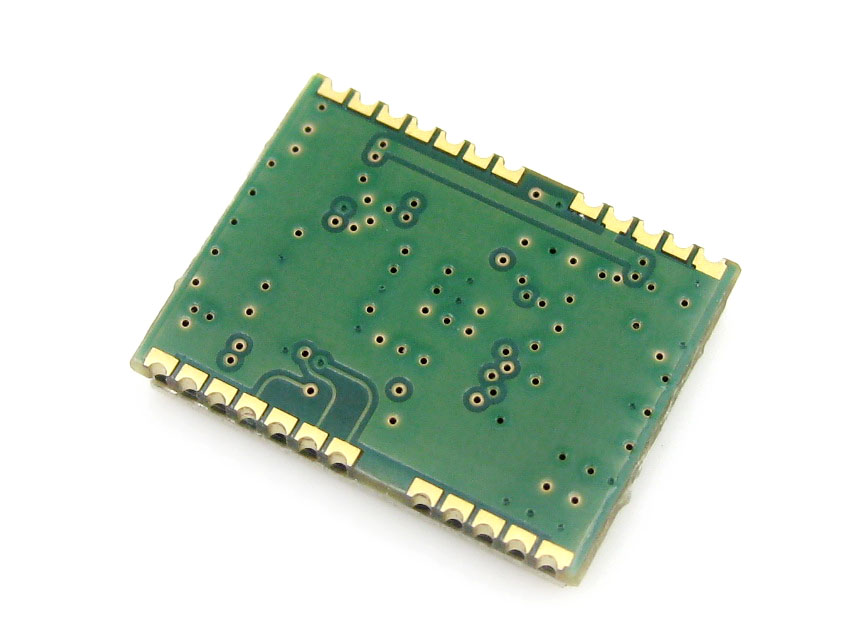

Photos


Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: www.waveshare.com/wiki/NEO-7M-C

Weight: 0.001 kg

Quick Overview

  • NEO-7M-C × 1
