3-Axis, Digital Magnetometer with I2C interface
Overview
The MAG3110 Board is a development tool for measuring magnetic fields. It features a high sensitive digital magnetometer MAG3110 onboard, which provides 3-Axis geomagnetic data via I2C interface. The MAG3110 Board can be used to get compass information.

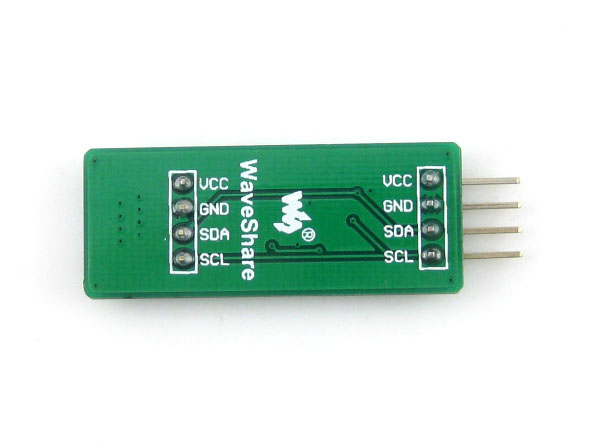

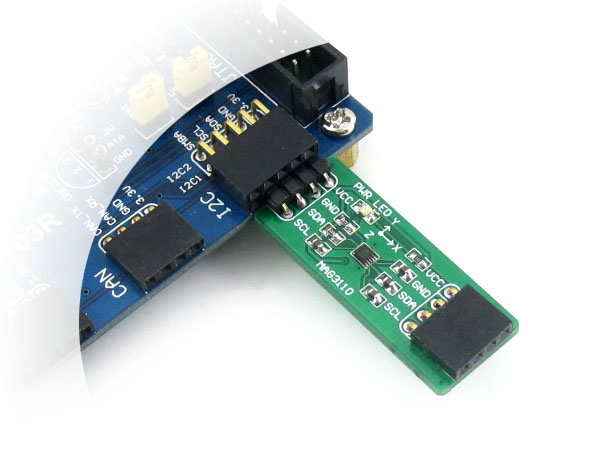

The MAG3110 Board features I2C pinheader on one side, and I2C connector on the opposite side. Hence, it's more flexible to connect the board to your development system. The board also supports I2C cascading, allowing the use of multi module connected to the I2C bus at the same time by connecting the pinheader and connector.
Features

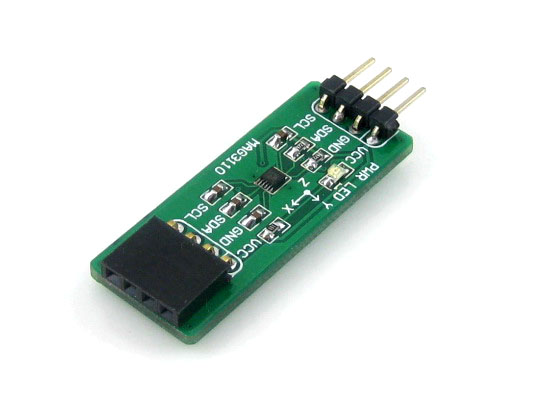

MAG3110, I2C pinheader, I2C female connector
Photos
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Wiki:
www.waveshare.com/wiki/MAG3110_Board
Weight: 0.003 kg
Quick Overview
- MAG3110 Board × 1
