Cubietruck Package A, mini PC

Overview

The Cubietruck (also named Cubieboard3) is the 3rd board of Cubieteam. It's an ARM mini PC running various Linux distros and/or Android system.

As the cubieboard2, Cubietruck features the Allwinner A20 (ARM cortex-A7 dual-core processor) onboard. What's more, it provides many enhancements like: 2GB DDR3 memory, 10M/100M/1G Ethernet PHY, WiFi+Bluetooth, VGA output, etc.

What's On Board

• Processor
  • AllWinner SOC A20, ARM® Cortex™-A7 Dual-Core, ARM® Mali400 MP2 Complies with OpenGL ES 2.0/1.1
• Features
  • 2GB DDR3@480MHz
  • Power input [email protected] with HDD, supports Li-battery & RTC
  • SATA 2.0 interface support 2.5' HDD (for 3.5' HDD, another 12V power supply is required)
  • Wifi + BT wireless connection with antenna on-board BCM AP6210
  • RTL8211E 10M/100M/1G Ethernet PHY
  • HDMI&VGA 1080P display output
  • Storage solution: NAND + MicroSD or TSD+ MicroSD or 2 x MicroSD
  • 2 x USB HOST, 1 x OTG, 1 x SPDIF, 1 x IR, 4 x LEDs, 1 Headphone, 3 x Keys
  • 54 expansion pinheaders including I2S, I2C, SPI, CVBS, LRADC x2,UART, PS2, PWMx2, TS/CSI, IRDA, LINEIN&FMIN&MICIN, TVINx4 with 2.0 pitch connectors
• Misc
  • Size: 11cm x 8cm  x 1.4mm
  • Running Android, Ubuntu and other Linux distros. Pre-installed Android 4.2.2.

Photos

Comparing the Cubieboards

What's on the DVK570

1. Cubietruck connector
2. UART0 interface: for connecting serial debugging module
3. I2C interface: easily connects to I2C modules such as PCF8563 RTC Module, MAG3110 Board, etc.
4. TVIN interface: video input
5. TVOUT interface: video CVBS output, for connecting display devices like TV
6. LINEIN interface: audio input
7. USB interface: USB TO UART (PL2303TA)
8. UART interface: easily connects to UART modules such as RS485 Board (3.3V), GPS module, etc.
9. SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, etc.
10. ZigBee connector: for connecting ZigBee modules like Core2530, supports working with ZB501
11. ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
12. 5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
13. PL2303TA: onboard USB TO UART convertor
14. 12M crystal: for PL2303TA
15. Buzzer
16. User LEDs: 4 colorful LEDs
17. Power indicator
18. AD keys: 7 common Android keys
19. ONE-WIRE jumper
20. Buzzer jumper
21. AD Keysjumper
22. User LEDs jumper
23. TVIN jumper
24. TVOUT jumper
25. UART0 jumper

DVK570 Photos

  DVK570 Cubietruck expansion board

  DVK570 Cubietruck expansion board

  DVK570 Cubietruck expansion board back view

  Connecting with Cubietruck and accessories

Examples

Development Resources

Data Types	Description	Download
Documentations	User Manual
	Developing Product
	Burning Firmware
	Porting Kernel
	Porting Drivers
	LiveSuit-User-Guide-EN
Schematics	DVK570
Image	Lubuntu
	Debian
	Android
Source Code	Source Code
Software	LiveSuitePack
	LiveSuitV305_For_Linux32
	LiveSuitV305_For_Linux64
	putty
	PL2303_Prolific_DriverInstaller_v1.8.0
	HPUSBDisk
	Win32DiskImager
	ultra-serial-port-monitor

Wiki: www.waveshare.com/wiki/Cubietruck_Package_A

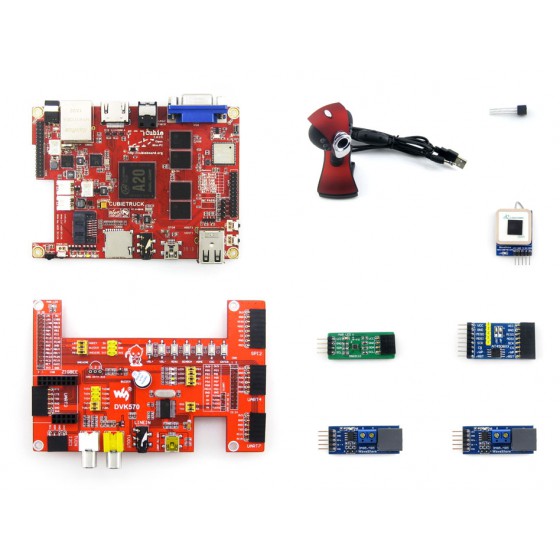

Package Contains
