- Description
Details
7 inch 800*480 Multicolor Graphic LCD, with capacitive touch screen and stand-alone touch controller
Key Parameters
| LCD Type | TFT |
|---|---|
| LCD Interface | 24-bit parallel |
| Touch Screen Interface | 4 wires, capacitive |
| Touch Controller | GT811 |
| Backlight | LED |
| Display Size (mm) | 154.08 (W) × 85.92 (H) |
| Dot Pitch (mm) | 0.0642 (W) × 0.1790 (H) |
| Aspect Ratio | 8 : 5 |
| Resolution | 800 * 480 (Pixel) |
| Power Consumption | TBD |
| Backlight Current | TBD |
| Operating Temp. (℃) | -20~+70 |

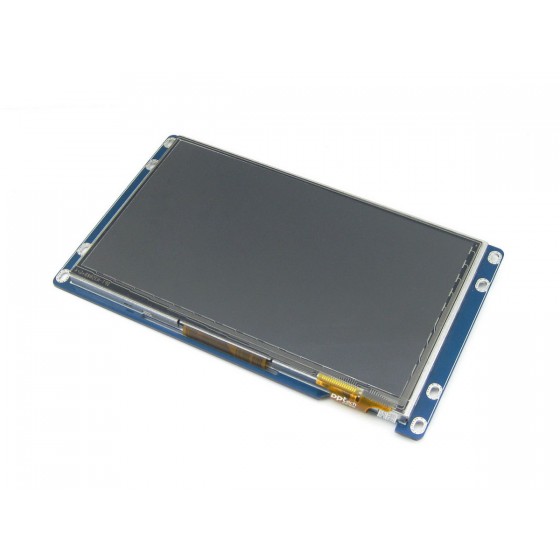

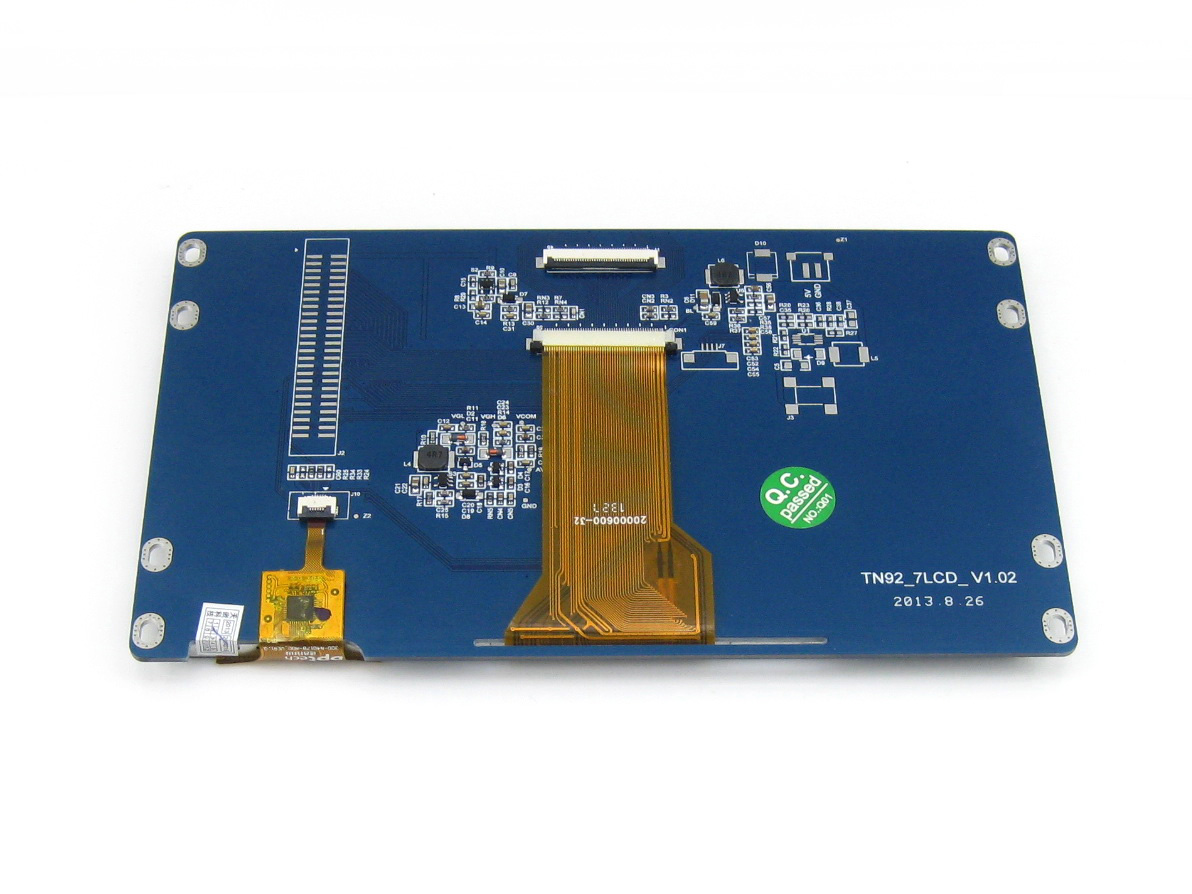

Photos
Interface Definition
| PIN NO. | SYMBOL | DESCRIPTION | Type | FUNCTION |
|---|---|---|---|---|
| 1 | VCC | Power positive | Power | Connects to 5V power supply |
| 2 | VCC | Power positive | Power | Connects to 5V power supply |
| 3 | B0 | Data pin | Input | Blue data |
| 4 | B1 | |||
| 5 | B2 | |||
| 6 | B3 | |||
| 7 | B4 | |||
| 8 | B5 | |||
| 9 | B6 | |||
| 10 | B7 | |||
| 11 | GND | Ground | Power | GND |
| 12 | G0 | Data pin | Input | Green data |
| 13 | G1 | |||
| 14 | G2 | |||
| 15 | G3 | |||
| 16 | G4 | |||
| 17 | G5 | |||
| 18 | G6 | |||
| 19 | G7 | |||
| 20 | GND | Ground | Power | GND |
| 21 | R0 | Data pin | Input | Red data |
| 22 | R1 | |||
| 23 | R2 | |||
| 24 | R3 | |||
| 25 | R4 | |||
| 26 | R5 | |||
| 27 | R6 | |||
| 28 | R7 | |||
| 29 | GND | Ground | Power | GND |
| 30 | PWM | Backlight brightness adjustment | Input | PWM signal for adjusting backlight |
| 31 | I2C_SDA | I2C data | Input/Output | I2C data pin, read/write data |
| 32 | I2C_SCL | I2C clock | Input | I2C clock pin |
| 33 | DE | Control mode selection | Input | DE = 0 : SYNC mode DE = 1 : DE mode |
| 34 | VSYNC | Vertical Synchronization | Input | Vertical synchronous signal input |
| 35 | HSYNC | Horizontal Synchronization | Input | Horizontal synchronous signal input |
| 36 | DCLK | LCD clock | Input | LCD clock input |
| 37 | X- | Touch panel X- | Output | Resistive touch panel X-analog output/NC for Capacitive touch panel |
| 38 | X+ | Touch panel X+ | Output | Resistive touch panel X+analog output/NC for Capacitive touch panel |
| 39 | Y-/CAP_INT | Touch panel Y-/interrupt | Output | Resistive touch panel Y-analog output/Capacitive touch panel external touch interrupt |
| 40 | Y+/CAP_WAKE | Touch panel Y+/WAKEUP | Output | Resistive touch panel Y+analog output/Capacitive touch panel wakeup external TP controller |
Downloads
Development resources:datasheets, etc.
Wiki: www.waveshare.com/wiki/7inch_Capacitive_Touch_LCD_(B)
External Dimension
Compatibility
This item is compatible with the following products:
- E9 mini PC
Selection Guide
| PartNumber | Touch Panel Type | Resolution | LCD Data Interface | Touch Controller | For Use With |
|---|---|---|---|---|---|
| 4.3inch Capacitive Touch LCD | Capacitive | 800x480 | 24PIN RGB | GT911 | MCU with LCD controller |
| 7inch Capacitive Touch LCD (C) | Capacitive | 800x480 | 16PIN | GT911 | MCU without LCD controller |
| 7inch Capacitive Touch LCD (F) | Capacitive | 1024x600 | 24PIN RGB | GT911 | MCU with LCD controller |
| 7inch Capacitive Touch LCD (G) | Capacitive | 800x480 | 24PIN RGB | GT911 | MCU with LCD controller |
| 10.1inch Capacitive Touch LCD (D) | Capacitive | 1024x600 | 24PIN RGB/LVDS | FT5406 | MCU with LCD controller |
Weight: 0.264 kg
Quick Overview
- 7inch Capacitive Touch LCD (B) × 1
- 40-pin FFC × 1
